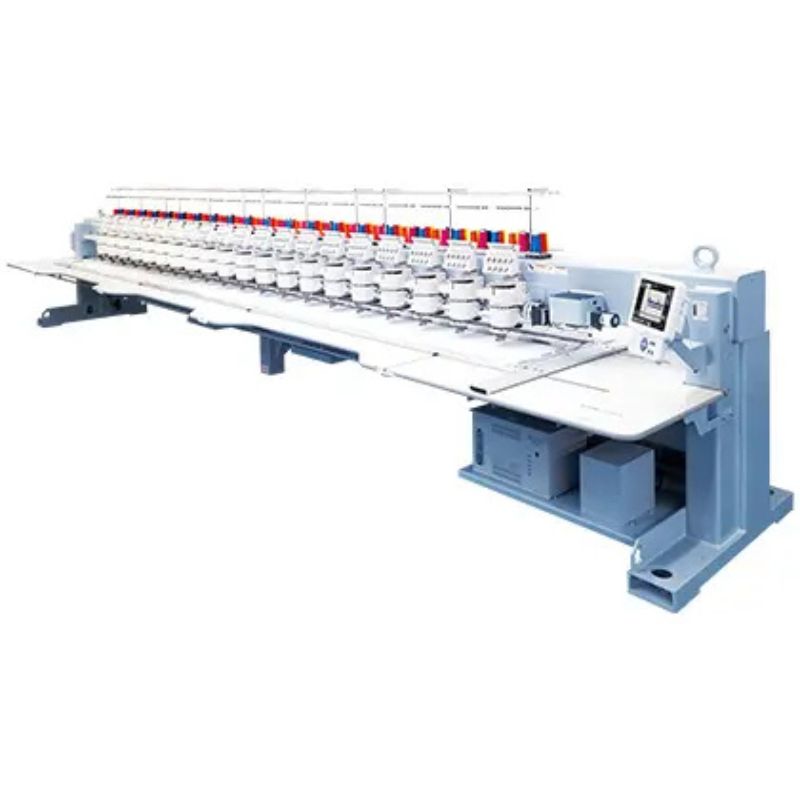

Barudan BELS-H Series 9 Needles High Speed Latest Multi Head Model
Latest multi-head model that continues to lead the industry with the highest quality embroidery, productivity and durability.
Designed for high volume production and superior stitch quality with a maximum speed of 1200rpm.
Equipped with 9 needles and available in 15 to 20 heads with an embroidery area of 800mm (H) x 400mm (V).
| MODEL: | BELS-Y920H |
|---|---|
| Embroidery Area: | 600X300/600 |
| Number of Needles: | 9 |
Description
Barudan BELS-H Series 9 Needles | High Speed Embroidery Machine
Function
01. New Tensioners
Large LED for easier monitoring of machine status. User-friendly thread ensures easier threading.
02. Servo Drive Motors
Powerful servo motors are designed for high productivity, reliability and excellent stitch quality.
03. High Speed 9-Needle Rotary Head
High speed rotary head with maximum speed or 1200 spm. Our unique rotary head provides superior embroidery quality, productivity, and durability.The compact head offers more room for fabric and frame changes, and is highly regarded in the industry. Additionally, the rotary head allows quick and smooth color changes.
04. High Quality MK6 Trimmers
Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability.
05. Double Field Function (Continuous Embroidery)
BELS-Y920H 600X300/600 example:
☞ Maximum embroidery field: 600mm in vertical x 300mm in horizontal direction when using all 18 heads
☞ Maximum embroidery field: 600mm in vertical x 600mm in horizontal direction when using every other head (10 heads).
(Note) Only even or odd heads can be used in standard specifications. Only odd number of heads can be used in some specifications.
06. Hoop Outline Display
Frame can be displayed on the screen by reading the barcode attached on frame.
※A barcode reader is required separately.
07. Frame Centering / Frame Limit Function
Places current design in the frame automatically
Frame Centering function sets a design in a selected frame automatically.
Prevents machine operation if design is outside of frame limit
Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
08. Shortcuts
Customize most-used icons on the screen
Customize operation icons
Can arrange a group of most used icons for easy access based on particular application.
09. Design Transfer / Machine Networking
USB conncetion
Import and export designs data saved in USB memory
Bluetooth Design Transfer
Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan L series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication—even large stitch count designs.
※ Bluetooth receiver and special software “Bluetooth Manager” are need separately
LAN connection
B-NET networking software connects up to 100 machines. Using a LAN Ethernet connection, the Barudan BELS-H Series 9 Needles lets operators push designs via Schedule Mode or pull them through Direct Download Mode. It also delivers web-based dashboards, live machine status tracking, and detailed production analytics reports. These smart connectivity features boost workflow efficiency, improve real-time control, and enhance productivity in modern industrial embroidery operations.
※ Special networking software is required separately. The number of connection is different depnding on the sotware.
Standard
LED
Bobbin Winder (BN-IIIe)
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BELS-Y915H | 800X400/500 | 400 | 800X6000 | 9 | 0.1–12.7 | 200–1200 | 1P AC200V–AC240V 3P AC200V–AC415V |
1.9 |
|---|---|---|---|---|---|---|---|---|
| BELS-Y918H | 800X400/500 | 400 | 450X7300 | 9 | 0.1–12.7 | 200–1200 | 1P AC200V–AC240V 3P AC200V–AC415V |
1.9 |
| BELS-Y920H | 600X300/600 | 300 | 600X6000 | 9 | 0.1–12.7 | 200–1200 | 1P AC200V–AC240V 3P AC200V–AC415V |
1.9 |
Others
・LAN Port x 1
・USB Port x 3
・Touch Screen 12.1 inch LCD, Resolution 1280X800 pixl
・300 memory locations, 300 million stitch capacity
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.
Machine Dimensions
MODEL BELS-Y920H
| Model Name | Maximum Machine Dimension(mm) | |||
| embroidary area (mm) | L | W | H | |
| BELS-Y915H | 800X400/500 | 7575 | 2100 | 1670 |
|---|---|---|---|---|
| BELS-Y918H | 800X400/500 | 8775 | 2100 | 1670 |
| BELS-Y920H | 600X300/600 | 7945 | 1700 | 1670 |
・Machines and specifications are subject to change at any time without prior notice.
Option
Loop & Code Device

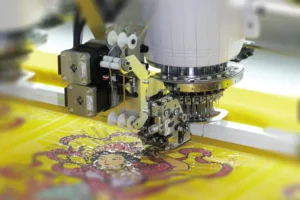

Sequin Devices
Signal Tower

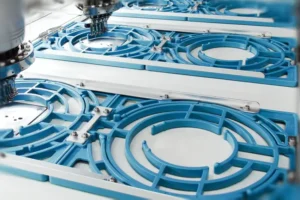

One Touch Frame
Spider Frame
Long Wooden Frame
