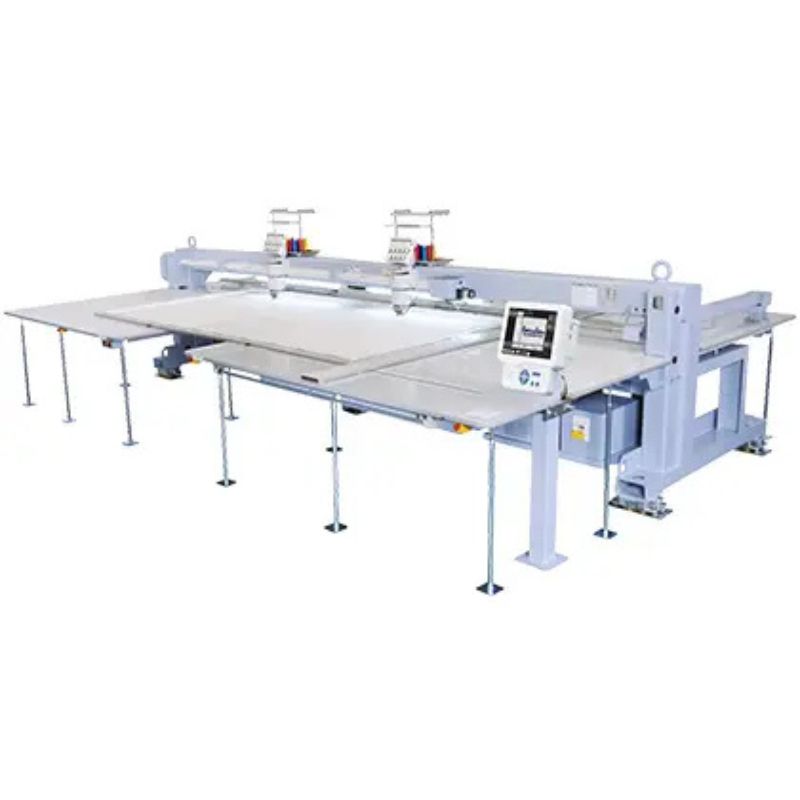

Barudan BELS Large Field Series
Large field model to realize varicolored embroidery in highest quality in large embroidery field.
Enabling embroidery on home textile products, ethnic cloths, flags, scarfs and so on.
Wide range of line up with the number of needles from 9 to 15 with the maximum embroidery field of 1600mm (H) and 1600mm (V).
| MODEL: | BELS-Y902 |
|---|---|
| Embroidery Area: | 1500X1000/1000 |
| Number of Needles: | 9 |
Description
Barudan BELS Large Field Series
Function
01. New Tensioners
The large LED display makes it easy to monitor the machine’s operating status. Updated thread guides make threading easy.
02. Powerful Servo Motors
Servo motors ensure high productivity and exceptional quality embroidery.
03. Rotary Head with 9 Needles
Our unique rotary head provides superior embroidery quality, productivity, and durability.The compact head offers more room for fabric and frame changes, and it highly regarded in the industry. Additionally, the rotary head allows quick and smooth color changes.
04. High Quality MK6 Trimmers
Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability.
05. Double Field Function (Continuous Designs)
BELS-Y904 1500X500/1000 Example:
☞ Maximum embroidery field: 1500mm in vertical x 500mm in horizontal direction while using all 4 heads.
☞ Maximum embroidery field: 1500mm in vertical x 1000mm in horizontal direction while using 2 heads—either by even or odd numbered of heads
06. Matrix
Useful function for producing badges and emblems.
Machine sews continously by entering the number of lines and rows.
07. Frame Centering / Frame Limit Function
Places current design in the frame automatically
Frame Centering function sets a design in a selected frame automatically.
Prevents machine operation if design is outside of frame limit
Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
08. Shortcuts
Customize most-used icons on the screen
Customize operation icons
Can arrange a group of most used icons for easy access based on particular application.
09. Design Transfer / Machine Networking
USB conncetion
Import and export designs data saved in USB memory
Bluetooth Design Transfer
Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan L series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication—even large stitch count designs.
※ Bluetooth receiver and special software “Bluetooth Manager” are required separately
LAN connection
B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
※ Special networking software is required separately. The number of connection is different depnding on the sotware.
Standard
LED
-
Bobbin Winder (BN-IIIe)
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BELS-Y901 | 1500X500/500 | — | 1500X500 | 9 | 0.1–12.7 | 200–1000 | 1P AC200V–AC240V 3P AC200V–AC415V |
0.34 |
|---|---|---|---|---|---|---|---|---|
| 1500X1000/1000 | 1500X1000 | 0.6 | ||||||
| BELS-Y902 | 1500X500/500 | 500 | 1500X1000 | 9 | 0.1–12.7 | 200–1000 | 1P AC200V–AC240V 3P AC200V–AC415V |
0.6 |
| 1500X500/1000 | 1500X1500 | |||||||
| 1500X1000/1000 | 1000 | 1500X2000 | ||||||
| BELS-Y904 | 1500X500/500 | 500 | 1500X2000 | 9 | 0.1–12.7 | 200–1000 | 1P AC200V–AC240V 3P AC200V–AC415V |
0.6 |
| 1500X500/1000 | ||||||||
| 1500X1000/1000 | 1000 | 1500X4000 |
Others
・LAN Port x 1
・USB Port x 3
・Touch Screen 12.1 inch LCD, Resolution 1280X800 pixl
・300 memory locations, 300 million stitch capacity
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.
Machine Dimensions
MODEL BELS-Y902
| Model Name | Maximum Machine Dimensions(mm) | |||
| Embroidery Area (mm) | L | W | H | |
| BELS-Y901 | 1500X500/500 | 2050 | 3500 | 1670 |
|---|---|---|---|---|
| 1500X1000/1000 | 3050 | 3500 | 1670 | |
| BELS-Y902 | 1500X500/500 | 2550 | 3500 | 1670 |
| 1500X500/1000 | 3550 | 3500 | 1670 | |
| 1500X1000/1000 | 4050 | 3500 | 1670 | |
| BELS-Y904 | 1500X500/500 | 3550 | 3500 | 1670 |
| 1500X500/1000 | 4550 | 3500 | 1670 | |
| 1500X1000/1000 | 6050 | 3500 | 1670 | |
・Machines and specifications are subject to change at any time without prior notice.
Option
Signal Tower
