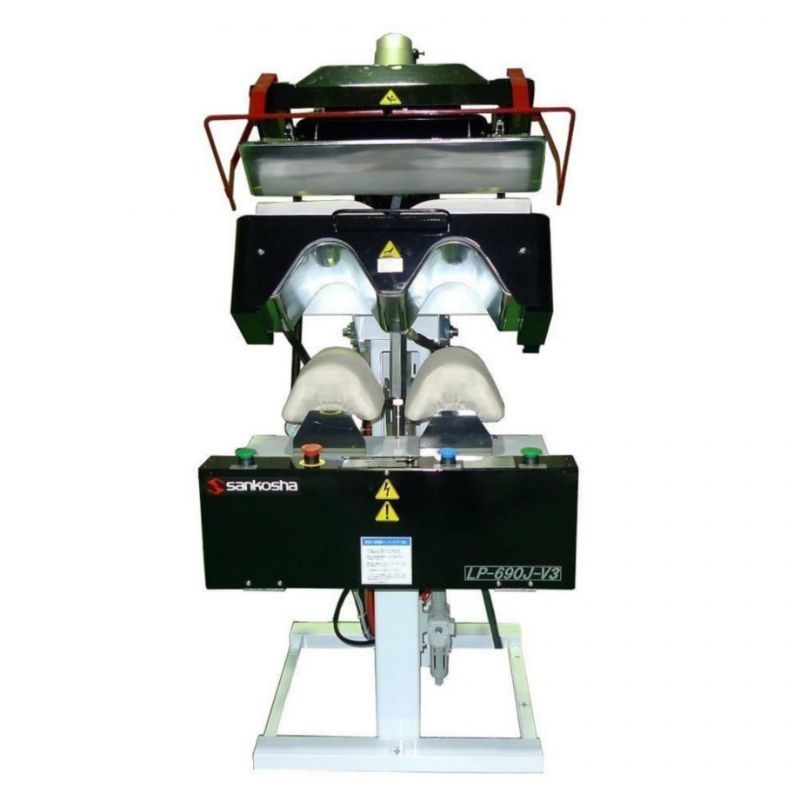

Naomoto LP-690E-V3 Neck and Wrist Ironing Press
The single neck and wrist press LP-690E-V3 is characterized by an high quality finishing standard, which guarantees an impassable finish in the field.
The machine is equipped with a powerful pressing cylinder and an intuitive and easy to use operating panel.
The neck press is equipped with a tension system, while the wrist press is capable of absorbing the pressure generated by the machine
Description
The Naomoto LP-685E Neck and Wrist Double Press is a high-precision industrial garment finishing machine designed for efficient pressing of collars, cuffs, and wrist areas. Built with advanced Japanese engineering, it ensures consistent pressure, accurate shaping, and high-quality finishing results for professional garment production.
The Naomoto LP-685E Neck and Wrist Double Press improves production efficiency by delivering fast and uniform pressing on critical garment areas.
The positioning of the singular neck and wrist press is made easy and space-saving thanks to the compact design and the reduced volume.
This machine for shirt ironing has been specifically designed for the laundry and tailoring field.
Technical Features of The Neck and Wrist Ironing Press LP-690E-V3:
- Approximate capacity: up to 60 shirt/hour
- Electricity supply: 230V 1P
- Electricity consumption: 0,03kW
- Air consumption: 23 litres/cyclo
- Air Pressure: 6Bar
- Air tube diameter: 3/8”
- Steam pressure: 6Bar
- Steam consumption: 10 Kg/h
- Steam hose diameter: entrance ½”, exit ½”
- Net Weight: 210 Kg
- Gross Weight: 245 Kg
- Measurements (width x depth x height): 71 x 100 x 162 cm
- Transport Measurements (width x depth x height): 84 x 115 x 157 cm
For the installation the following components are necessary:
- N. 4 pz | Anchor bolt M12
- N. 1 pz | Sphere valve 1/2
- N. 1 pz | Sphere valve 3/8
- N. 1 pz | 1/2 condensation discharger
- Switch: approximatly 3 A
