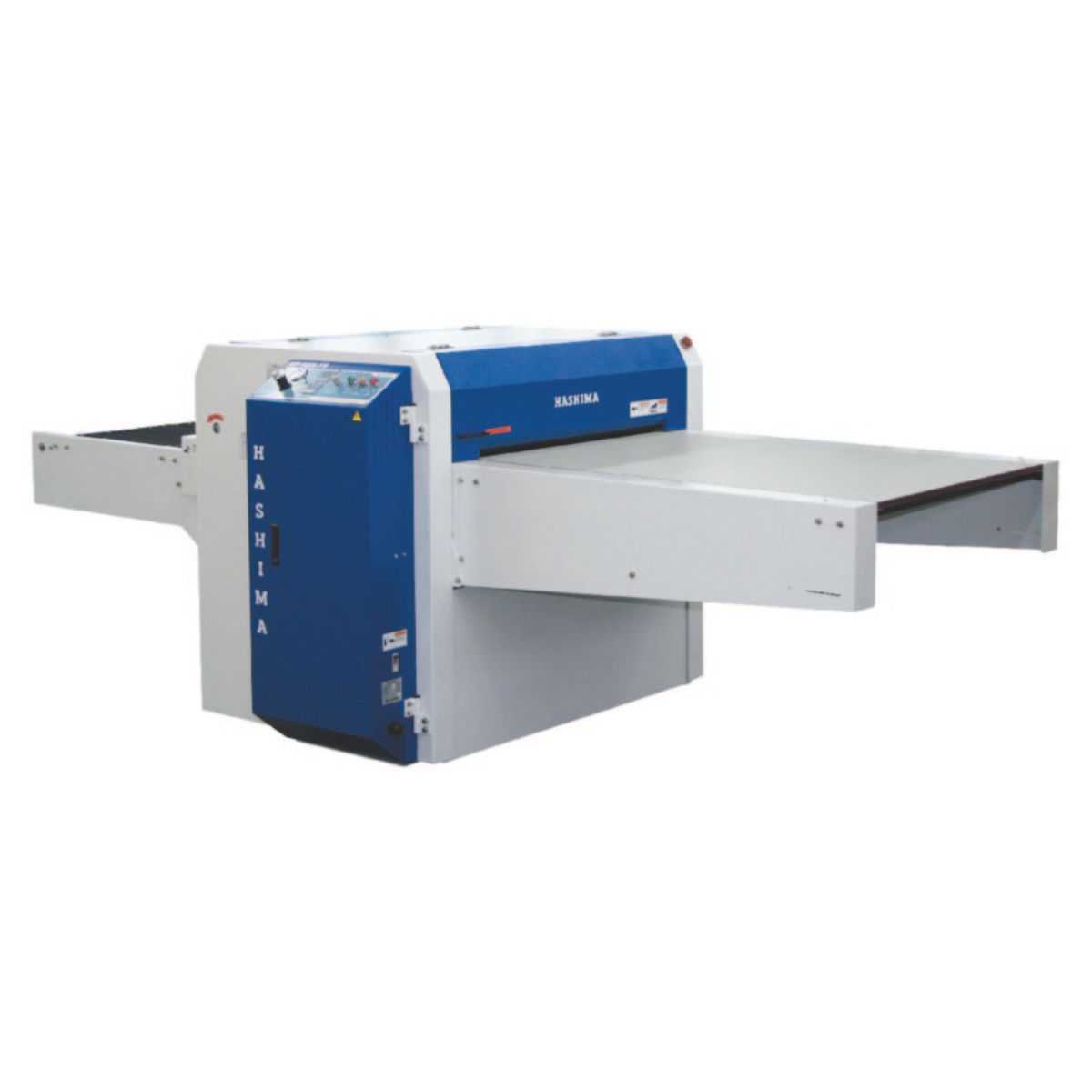

Hashima HP-1000LS-I・II/1200LS Straight Linear Fusing Press
Description
High-Speed Continuous Production Performance
The Hashima Straight Linear Fusing Press is engineered for uninterrupted industrial operation. This model series delivers outstanding productivity through continuous linear processing. Production efficiency increases significantly with the built-in front conveyor belt system. Automatic belt warping prevention keeps upper and lower belts perfectly aligned. The integrated feedback control system minimizes operational errors. Temperature stability remains within ±3°C through electronic thermostat and SSR control. This precision guarantees uniform bonding quality across every garment piece. The Hashima Straight Linear Fusing Press supports consistent performance during long working hours.
Advanced Control and Material Adaptability
Operators control heating zones easily using the heater control switch. Upper, lower, front, and rear heaters adjust independently for different fabric types. This flexibility allows safe processing of delicate and heavy materials. The silicon-coated pressure rollers ensure smooth fabric movement. When pressure equals zero, the rollers separate completely for safety. The special hard alumite heating plate resists wear and extends machine lifespan. Optional Rotary Strip Off Device enhances production speed. Multiple stacker configurations integrate smoothly with existing production lines.
Features
- The Seamless Belt is adopted as Standard and it promises Long Life.
- The Big Pressurization Roller assures Uniform High Pressure.
- Horizontal Pressurization prevents Puckering.
- The Cooling Fun will make Cool Down the Fused Material immediately.
- The machine adopts tension rollers at the back of the belts, so fabrics and extra interlining never wrap around them. This design prevents damage and keeps the belts protected from twisted materials.
- As the Tension Rollers are adopted on the Back of the belts, Fabrics or extra interlining never twine around the tension roller, therefore elts will be never damaged by twined fabrics or interlining.
- Require Air Compressor
Specification
| Description | Straight Linear Fusing Press | |
| Model | HP-1000LS-I・II | HP-1200LS |
| Voltage | 3P380V | 3P380V |
| Rated Output | 16.2kw | 18.9Kw |
| Fusing Width | 1000mm | 1200mm |
| Speed（MAX) | 12.7m/min | 12.7m/min |
| Pressure（MAX) | 65N/cm(6.69kgf/cm) | 54N/cm(5.52kgf/cm) |
| Temperature（MAX） | 195℃ | 195℃ |
| Heating Time | 6.8-31sec | 6.8-31sec |
| Weight | 1200kg | 1400kg |
| Size | 3838(L)×1454(W)×1027(H)mm | 3838(L)×1684(W)×1027(H)mm |
