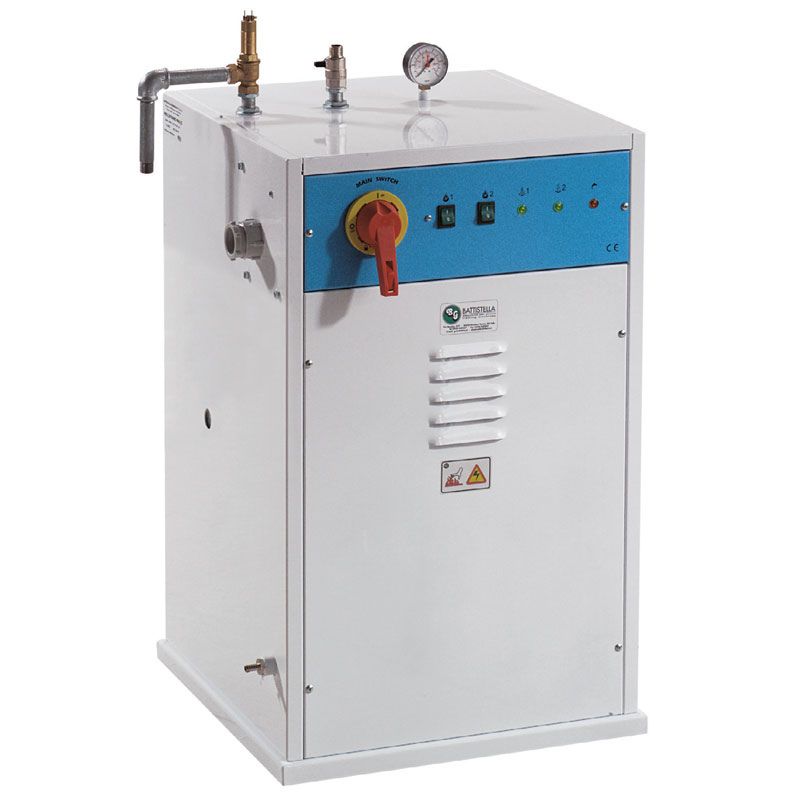

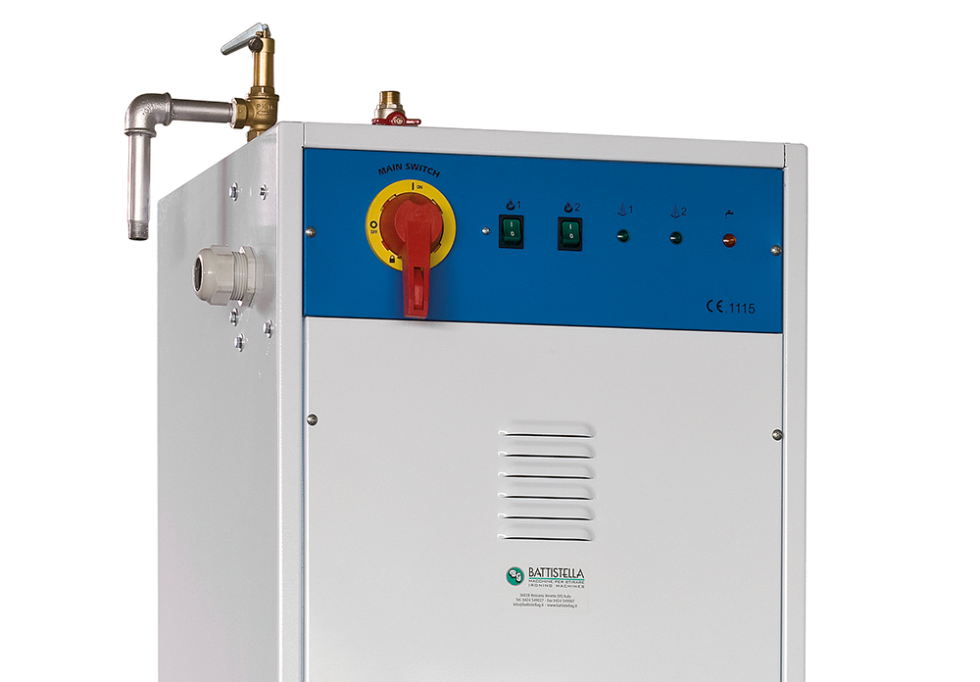

BATTISTELLA Saturno Max/S L102 Steam generator with 2 independent 51 L boilers
Description
Boiler capacity | 51 + 51 L – Tot. 102 L |
Boiler power | 24+24+24+24 kW – Tot. 96 kW |
Pump power | 0,7 x 2 HP |
Steam working pressure | 6 BAR |
Packaging | 1,5 m³ |
Overall dimensions | 80x66x200 H cm |
Weight | 230 Kg |
Standard voltage | 400 V+N / 50 Hz |
Voltage on request | 230 V – 50 Hz |
kW | 96 kW |
KCal/h | 104.000 |
Kg/h | 124÷130 |
