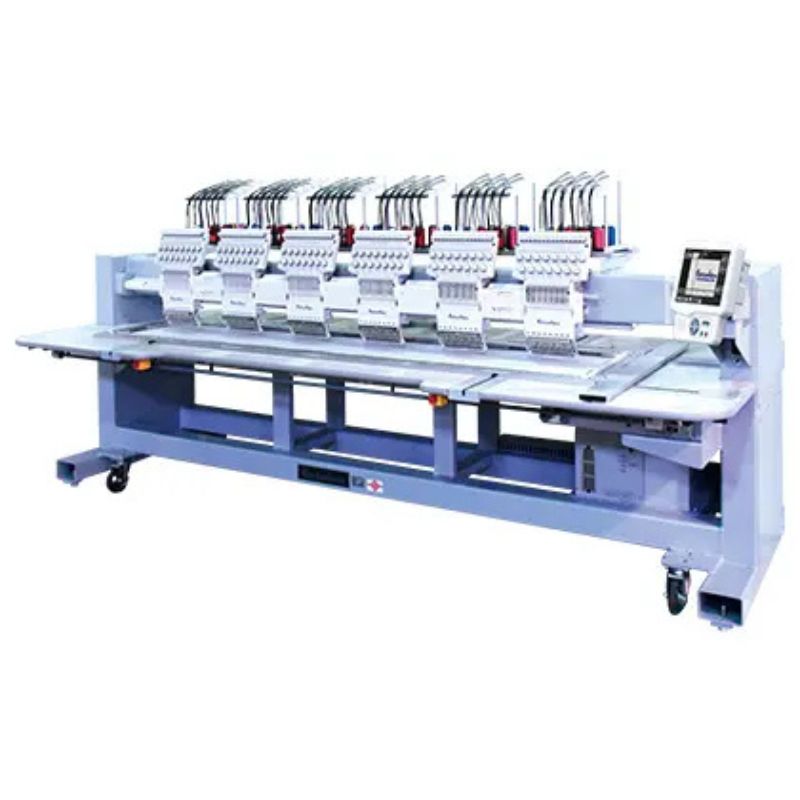

Barudan BELY-II Series 15 Colors Multi Head Embroidery Machine
Flat bed models that combine technology cultivated from years of high-performance multi-head machine sales, producing the best embroidery quality and productivity in the industry.
Equipped with a 15-needle in-line head with options for 2 to 8 heads, this model meets a wide range of needs with the industry’s largest embroidery area at 450mm (H) x 380mm or 520mm (V).
With a compact design, this machine is suitable for smaller spaces.
An excellent machine choice regardless of material being sewn, including garments, hats, shoes, and bags. It is highly regarded for its excellent embroidery quality.
| MODEL: | BELY-S1506II |
|---|---|
| Embroidery Area: | 450X400/400 |
| Number of Needles: | 15 |
Description
Barudan BELY-II Series 15 Colors | Advanced Multi Head Embroidery Machine
Function
01. New Tensioner
The large LED display makes it easy to monitor the machine’s operating status. Updated thread guides make threading easy.
02. Servo Drive Motors
Powerful servo motors are designed for high productivity, reliability and excellent stitch quality.
03. 15 Needle In-Line Sewing Head
15 colors reduces machine downtime by minimizing thread changes.
Each head can be cancelled individually for single or small orders.
04. High Quality MK6 Trimmers
Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability.
05. Matrix
Useful function for producing badges and emblems.
Machine sews continously by entering the number of lines and rows.
06. Hoop Outline Displayed on Machine
Displays the frame in use on screen by scanning a barcode attached to the frame.
※Barcode reader is required separately.
07. Frame Centering / Frame Limit Function
Places current design in the frame automatically
Frame Centering function sets a design in a selected frame automatically.
Prevents machine operation if design is outside of frame limit
Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
08. Shortcuts
Customize most-used icons on the screen
Customize operation icons
Can arrange a group of most used icons for easy access based on particular application.
09. Design Transfer / Machine Networking
USB conncetion
Import and export designs data saved in USB memory
Bluetooth Design Transfer
Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan L series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication—even large stitch count designs.
※ Bluetooth receiver and special software “Bluetooth Manager” are required separately
LAN connection
B-NET networking software connects up to 100 machines. Using a LAN Ethernet connection, the Barudan BELY-II Series 15 Colors enables operators to push designs through Schedule Mode or pull them via Direct Download Mode. It also provides web-based dashboards, real-time machine status monitoring, and detailed production reporting. These smart connectivity features improve workflow control, increase visibility, and enhance overall productivity in industrial embroidery operations.
※ Special networking software is required separately. The number of connection is different depnding on the sotware.
Standard
LED
Bobbin Winder (BN-IIIe)
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BELY-S1504II | 450X400/400 | 400 | 450X1600 | 15 | 0.1–12.7 | 200–1000 | 1P AC100V–AC200V 3P AC200V–AC415V |
0.35 |
|---|---|---|---|---|---|---|---|---|
| 600X400/400 | 600X1600 | |||||||
| BELY-S1506II | 450X400/400 | 400 | 450X2400 | 15 | 0.1–12.7 | 200–1000 | 1P AC100V–AC200V 3P AC200V–AC415V |
0.4 |
| 600X400/400 | 600X2400 | |||||||
| BELY-S1508II | 450X400/400 | 400 | 450X3200 | 15 | 0.1–12.7 | 200–1000 | 1P AC100V–AC200V 3P AC200V–AC415V |
0.4 |
| 600X400/400 | 600X3200 |
Other Standard Specifications
・LAN port x 1
・USB port x 3
・Touch Screen 12.1 inch LCD, Resolution 1280X800 pixl
・300 memory locations, 300 million stitch capacity
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.

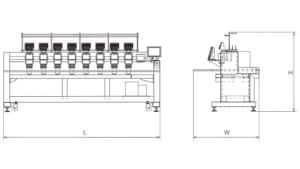

Machine Dimensions
| Model Name | Machine Maximum Dimension(mm) | |||
| embroidary area (mm) | L | W | H | |
| BELY-S1504II | 450X400/400 | 2640 | 1390 | 1620 |
|---|---|---|---|---|
| 600X400/400 | 2640 | 1690 | 1620 | |
| BELY-S1506II | 450X400/400 | 3440 | 1390 | 1620 |
| 600X400/400 | 3440 | 1690 | 1620 | |
| BELY-S1508II | 450X400/400 | 4240 | 1390 | 1620 |
| 600X400/400 | 4240 | 1690 | 1620 | |
・Machines and specifications are subject to change at any time without prior notice.
Option
Sequin Devices
Loop & Code Device
Signal Tower
One Touch Frame
Spider Frame
Long Wooden Frame
