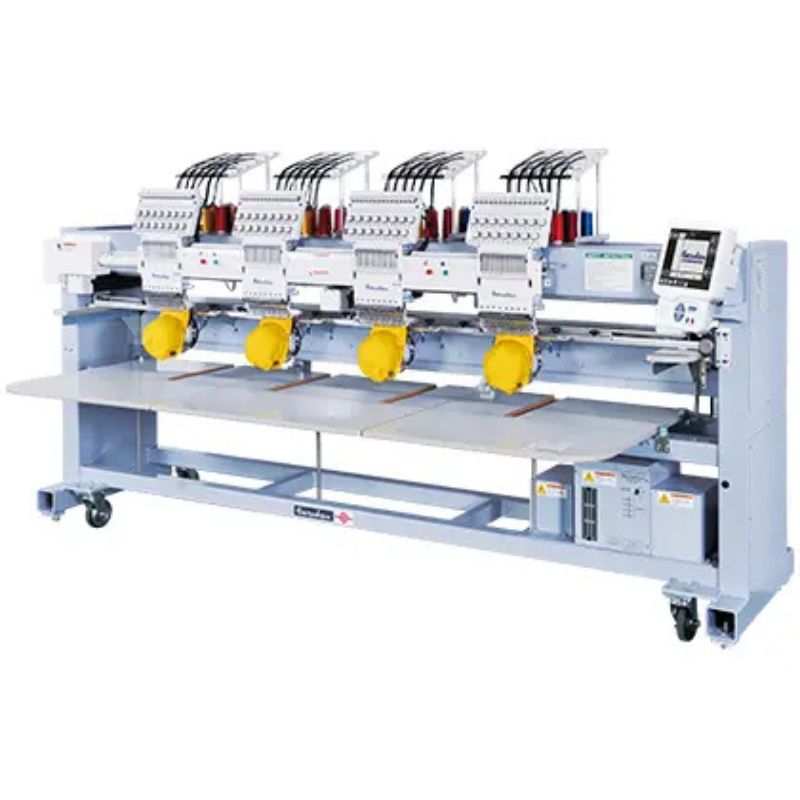

Barudan BELY-CII Series 15 Colors Drop Table
Drop table models that combine technology cultivated from many years of high-performance multi-head machine sales, providing the highest embroidery quality and productivity in the industry.

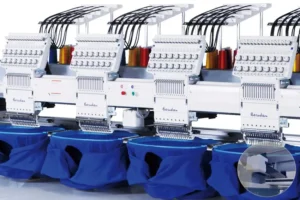

Equipped with a 15 needle in-line head with options for 2 to 8 heads. The LY-CII models meet a wide range of needs with the industry’s largest embroidery area of 450mm (H) x 380mm or 520mm (V).
The adoption of a newly designed thread trimmer and small diameter cylinder arm enables embroidery in tight areas such as pockets and small bags.
A wide array of frames are available, allowing embroidery on a diverse range of products including apparel, sportswear, uniforms, workwear, school merchandise, shoes, socks, gloves, hats, bags, and more.
| MODEL: | BELY-S1504CII |
|---|---|
| Embroidery Area: | 450X520/520 |
| Number of Needles: | 15 |
Description
Barudan BELY-CII Series 15 Colors | Drop Table Multi Head Embroidery Machine
Function
01. Narrow Cylinder Arm

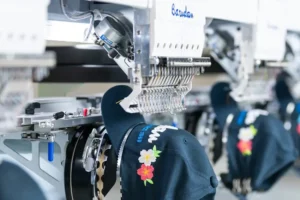

Smaller diameter cylinder arm and newly designed trimmer allows sewing deeper into narrow area on pockets and slippers.
02. Open Bridge-Type Chassis with Servo Motors
Open bridge chassis allows more room for sewing on shoes and bags.
03. New Tensioner
Larger LED on the new tensioner allows quick monitoring of machine status. New thread guides ensure easier threading.
04. 15 Needle In-Line Sewing Head
15 thread colors reduces machine downtime by minimizing thread changes.
Each head can be cancelled individually for single or small orders.
05. Compact Machine Width
With the detachable table is removed, the machine width is 800 mm. This allows the machine to fit through smaller doorways.
06. Standard Laser Pointer
Laser pointer assures easier centering and placement of design in frame.
07. Name Drop
Easier to view multiple name designs
Separates names in a multiple name design for verifying and sewing.
Easy to repair name
Access a single name if repair is needed.
Audible Alert
When a name is finished sewing, machine beeps to notify operator to change over to next item to be sewn. Operator is free to perform other tasks while machine is running.
08. Hoop Outline Displayed on Machine
Displays the frame in use on screen by scanning a barcode attached to the frame.
※Barcode reader is required separately.
09. Frame Centering / Frame Limit Function
Places current design in the frame automatically
Frame Centering function sets a design in a selected frame automatically.
Prevents machine operation if design is outside of frame limit
Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.
10. Shortcuts
Customize most-used icons on the screen
Customize operation icons
Can arrange a group of most used icons for easy access based on particular application.
11. Cap Frame Mode
Easy to change from Cap/Blue Frame mode.
Changes the setting of corresponding frames automatically by pressing dedicated on screen icons.
12. Design Transfer / Machine Networking
USB conncetion
Import and export designs data saved in USB memory
Bluetooth Design Transfer
Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan L series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication—even large stitch count designs.
※ Bluetooth receiver and special software “Bluetooth Manager” are required separately
LAN connection
B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
※ Special networking software is required separately. The number of connection is different depnding on the sotware.
Standard
LED
Bobbin Winder (BN-IIIe)
Maximum Frame for Finished Products
※ for 450X380 area =460X304(mm) standard / 450X520 area = 460X434(mm) standard
Laser Pointer (dot) ※only for first head
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Cap Frame（mm） | Blue Fram（mm） ※max |
Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BELY-S1502CII | 450X520/520 | 520 | 450X1040 | (Wide Cap Frame) 86 (H) x 360 (V) (Semi-Wide Cap Frame) 72 (H) x 172 (V) |
460X434 | 15 | 0.1–12.7 | (Blue Frame) 200–1100 (cap frame) 200–1000 |
1P AC100V–AC200V 3P AC200V–AC415V |
0.35 |
|---|---|---|---|---|---|---|---|---|---|---|
| BELY-S1504CII | 450X380/380 | 380 | 450X1520 | (Wide Cap Frame) 86 (H) x 360 (V) (Semi-Wide Cap Frame) 72 (H) x 172 (V) |
460X304 | 15 | 0.1–12.7 | (Blue Frame) 200–1100 (cap frame) 200–1000 |
1P AC100V–AC200V 3P AC200V–AC415V |
0.35 |
| 450X520/520 | 520 | 450X2080 | 460X434 | |||||||
| BELY-S1506CII | 450X380/380 | 380 | 450X2280 | (Wide Cap Frame) 86 (H) x 360 (V) (Semi-Wide Cap Frame) 72 (H) x 172 (V) |
460X304 | 15 | 0.1–12.7 | (Blue Frame) 200–1100 (cap frame) 200–1000 |
1P AC100V–AC200V 3P AC200V–AC415V |
0.4 |
| 450X520/520 | 520 | 450X3120 | 460X434 | |||||||
| BELY-S1508CII | 450X380/380 | 380 | 450X3040 | (Wide Cap Frame) 86 (H) x 360 (V) (Semi-Wide Cap Frame) 72 (H) x 172 (V) |
460X304 | 15 | 0.1–12.7 | (Blue Frame) 200–1100 (cap frame) 200–1000 |
1P AC100V–AC200V 3P AC200V–AC415V |
0.4 |
| 450X520/520 | 520 | 450X4160 | 460X434 | (Blue Frame) 200–1000 (cap frame) 200–1000 |
Other Standard Specifications
・LAN port x 1
・USB port x 3
・Touch Screen 12.1 inch LCD, Resolution 1280X800 pixl
・300 memory locations, 300 million stitch capacity
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.
Machine Dimensions
MODEL BELY-S1506CII
| Model Name | Machine Maximum Dimension(mm) | |||
| embroidary area (mm) | L | W | H | |
| BELY-S1502CII | 450X520/520 | 2045 | 1245 | 1690 |
|---|---|---|---|---|
| BELY-S1504CII | 450X380/380 | 2385 | 1245 | 1690 |
| 450X520/520 | 3085 | 1245 | 1690 | |
| BELY-S1506CII | 450X380/380 | 3145 | 1245 | 1690 |
| 450X520/520 | 4125 | 1245 | 1690 | |
| BELY-S1508CII | 450X380/380 | 3905 | 1245 | 1690 |
| 450X520/520 | 5265 | 1245 | 1690 | |
・Machines and specifications are subject to change at any time without prior notice.
