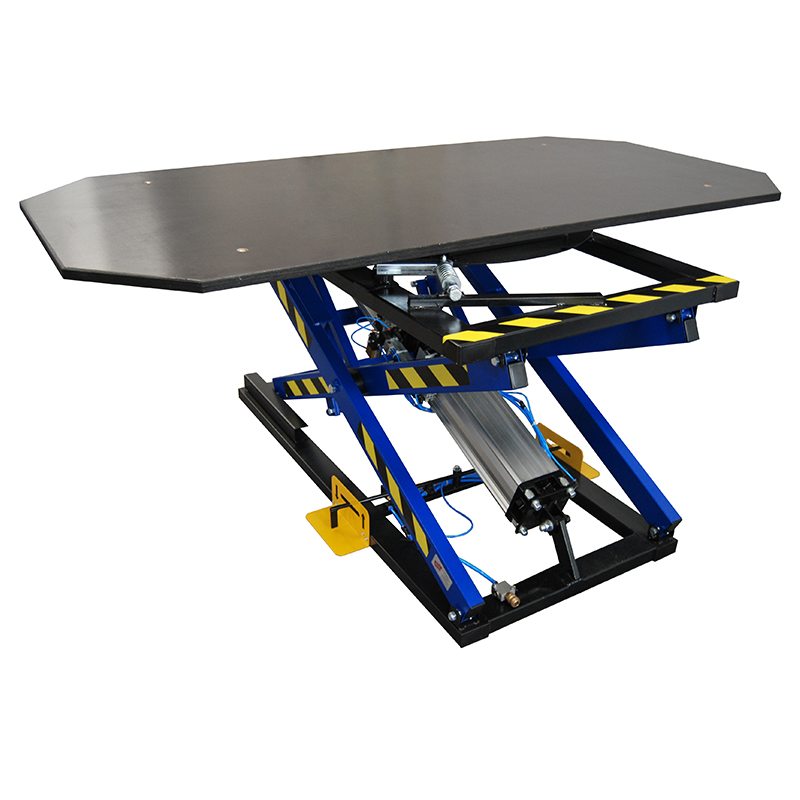

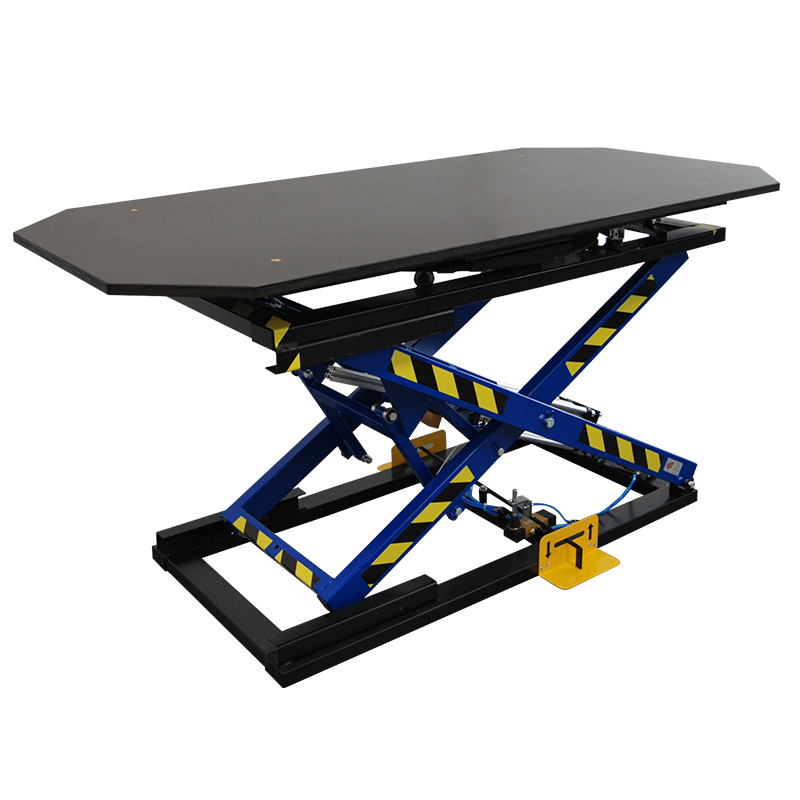

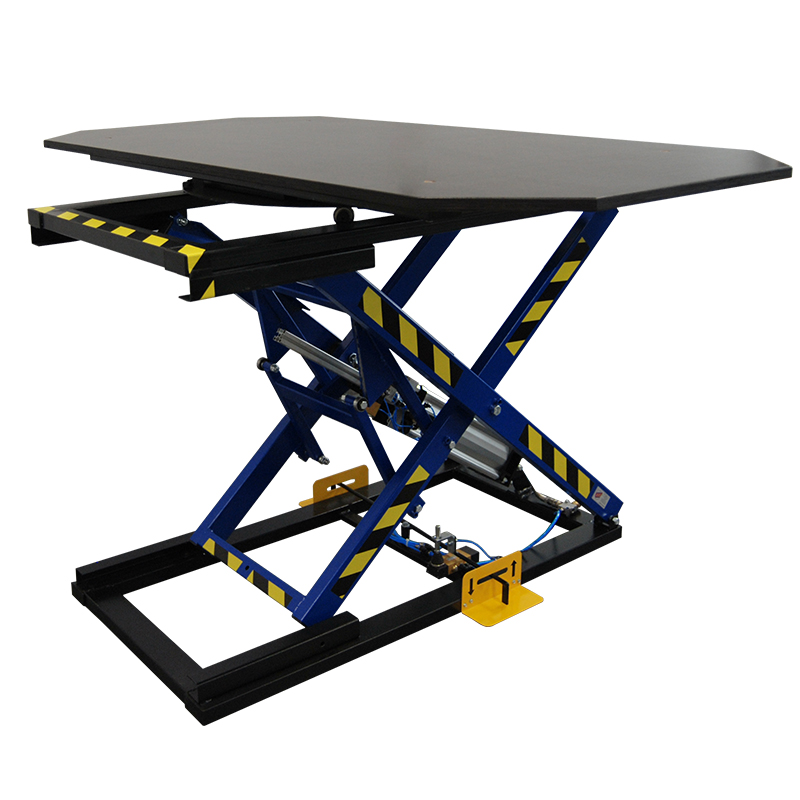

Rexel ST-3 MINI OP Pneumatic Lifting Table For Upholstery
This special table was designed in cooperation with one of UK’s biggest upholstery factory that makes around 250,000 sofas a year. A swivel tabletop with a spring brake system blocks the tabletop after each 90 degrees. The tabletop is made of high quality, water-resistant plywood. The table has a Height Positioning System: when one presses a pedal, the table starts to move, making a 2 seconds pause at a certain point of movement. The height of this pause can be adjusted on a special bar placed under the table. This solution allows upholsterer to work at a comfortable height and eliminates the need of time-consuming adjustments of the height of the table.
Description
Rexel ST-3 MINI OP Pneumatic Lifting Table for Upholstery
The Rexel ST-3 MINI OP Pneumatic Lifting Table offers a compact, efficient, and ergonomic solution for handling upholstery materials. Designed for smaller workspaces and precision tasks, it delivers smooth height adjustment, stable support, and improved workflow, making it ideal for upholstery workshops and light industrial applications.
Its compact footprint allows easy installation in limited spaces while maintaining the durability and performance required for daily use.
Key features:
- The table uses a solid steel profile construction with a pneumatic cylinder for strength and durability.
- A foot-controlled pneumatic cylinder allows smooth and precise height adjustment.
- The table includes a connection slot for pneumatic tools to support efficient workflow.
- The system automatically locks after switching off, ensuring safety (cutting power off does not fold the table).
- The table can include an optional drawer for convenient storage of upholstery tools.
- Using this lifting table reduces energy consumption by up to 15% compared to standard upholstery trestles.
- Employees using the lifting table increase productivity by at least 14% compared to regular upholstery trestles.
Specifications:
| Model | ST-3 MINI OP (old name ST-3/OB) |
| Working pressure | 6 bar (87 PSI) |
| Tabletop dimensions | 2000 mm x 1000 mm (78.74″ x 39.37″) |
| Pneumatic cylinder | D125x360 |
| Minimum height | 410 mm (16.14″) |
| Maximum height | 1190 mm (46.85″) |
| Maximum load | 100 kg (220.4 lbs) |
