Rexel ST-3/KP Pneumatic Lifting Table For Upholstery

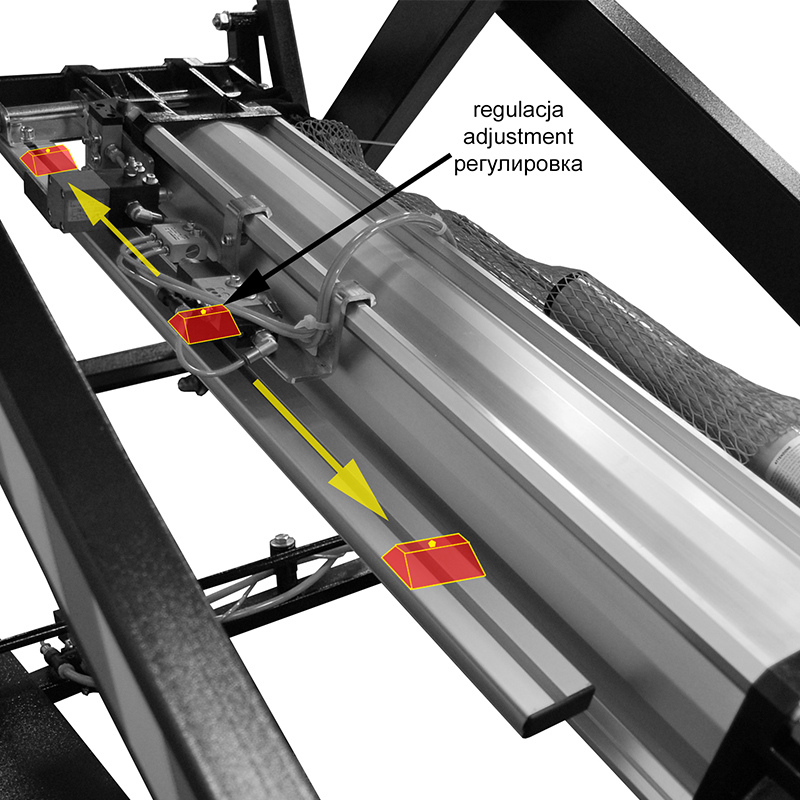

The table is equipped with a carpet-covered tabletop with sliding rails and a hydraulic anti-bouncing brake system that helps to prevent the table from bouncing. The table has a Height Positioning System: when one presses a pedal, the table starts to move, making a 2 seconds pause at a certain point of movement. The height of this pause can be adjusted on a special bar placed under the table. This solution allows upholsterer to work at a comfortable height and eliminates the need of time-consuming adjustments of the height of the table.
Description
Key features:

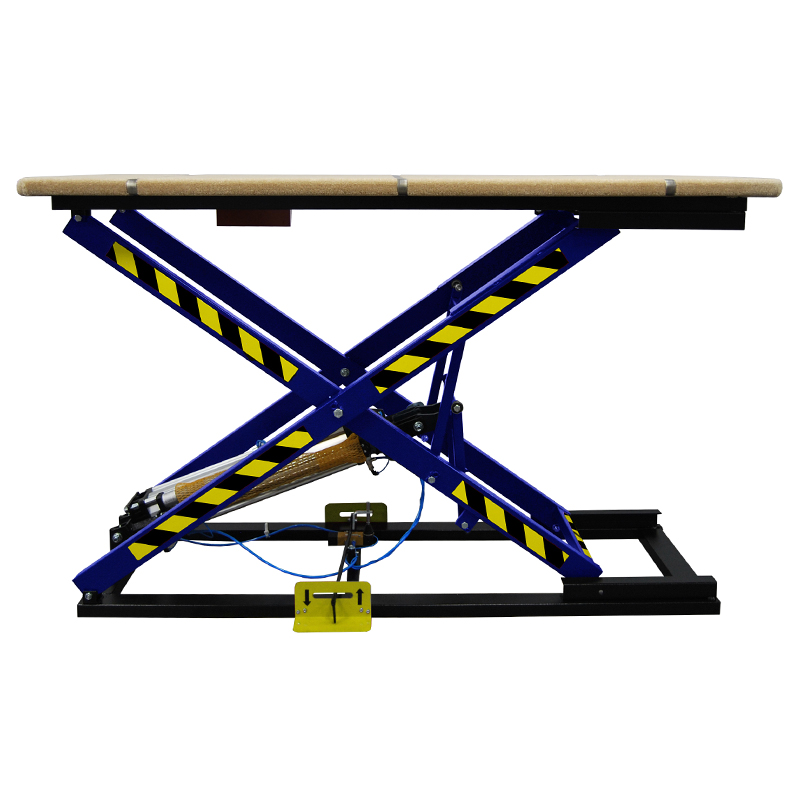

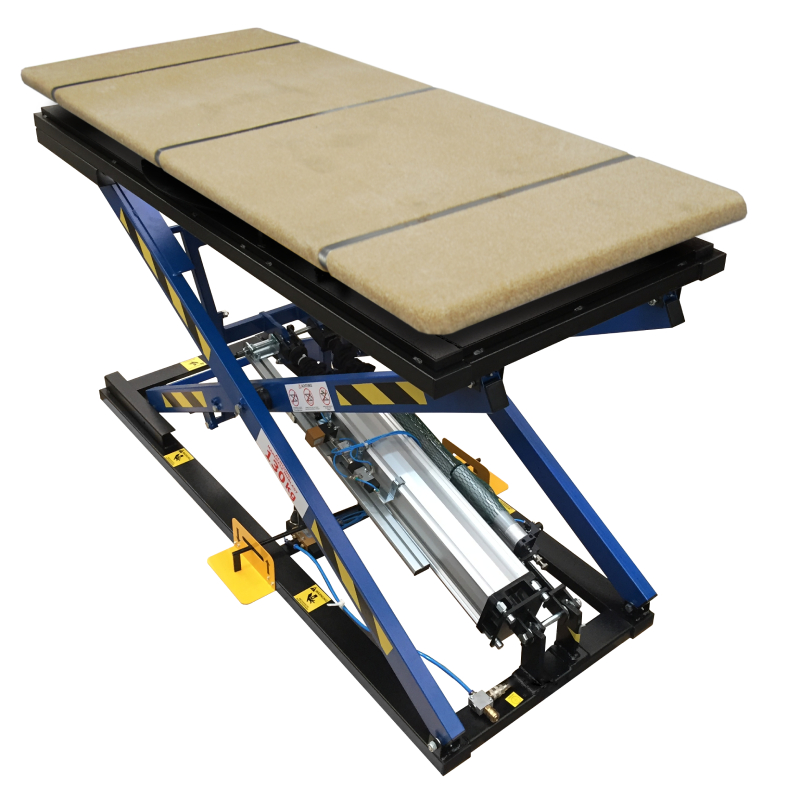

This solid construction is based on steel profiles and pneumatic cylinder.
The pneumatic cylinder is foot-controlled.
The table has a connection slot for pneumatic tools.
After turning the table off it blocks automatically (cutting power off does not make the table fold).
The table can be equipped with a drawer for upholstery tools.
It has been proven that using our lifting tables decrease the use of energy by 15% in comparison to upholstery trestles.
An increase in productivity of at least 14% has been observed when employees used our lifting tables instead of regular upholstery trestles.
Specifications:
| Model | ST-3/KP |
| Working pressure | 6 bar (87 PSI) |
| Tabletop dimensions | 2000 mm x 900 mm (78.74″ x 35.43″) |
| Pneumatic cylinder | D125x600 |
| Minimum height | 320 mm (12.59″) |
| Maximum height | 1280 mm (50.39″) |
| Maximum load | 160 kg (352.74 lbs) |
