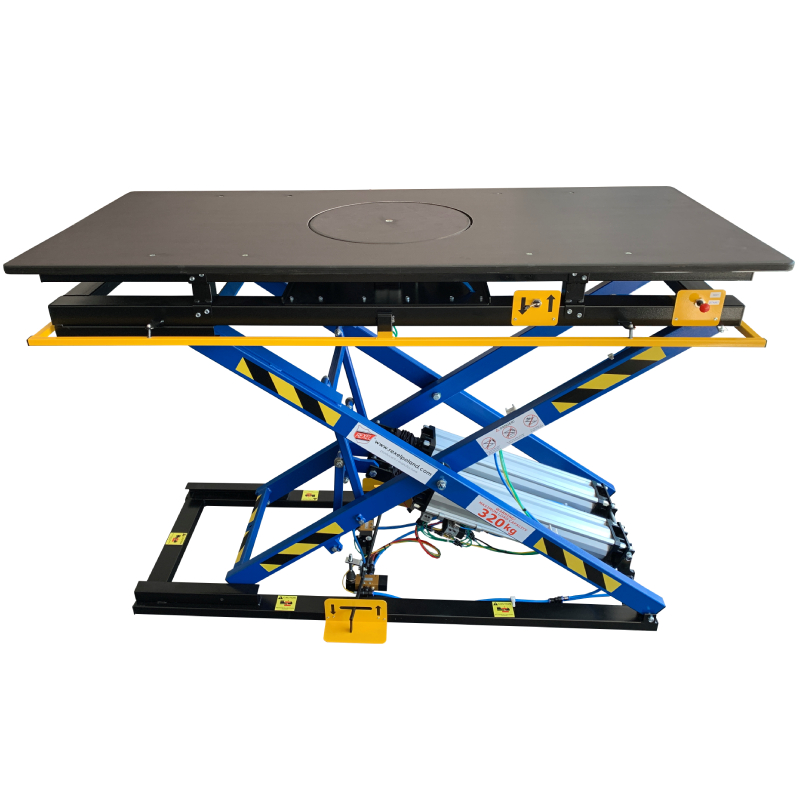

Rexel ST-3/HDKRBC Pneumatic Lifting Table For Upholstery
The table is designed for lifting heavy furniture pieces or heavy elements up to 320 kg. It is equipped with two pneumatic cylinders that provide necessary support for the whole construction. Moving parts are supported with thicker, closed profiles for improved durability.

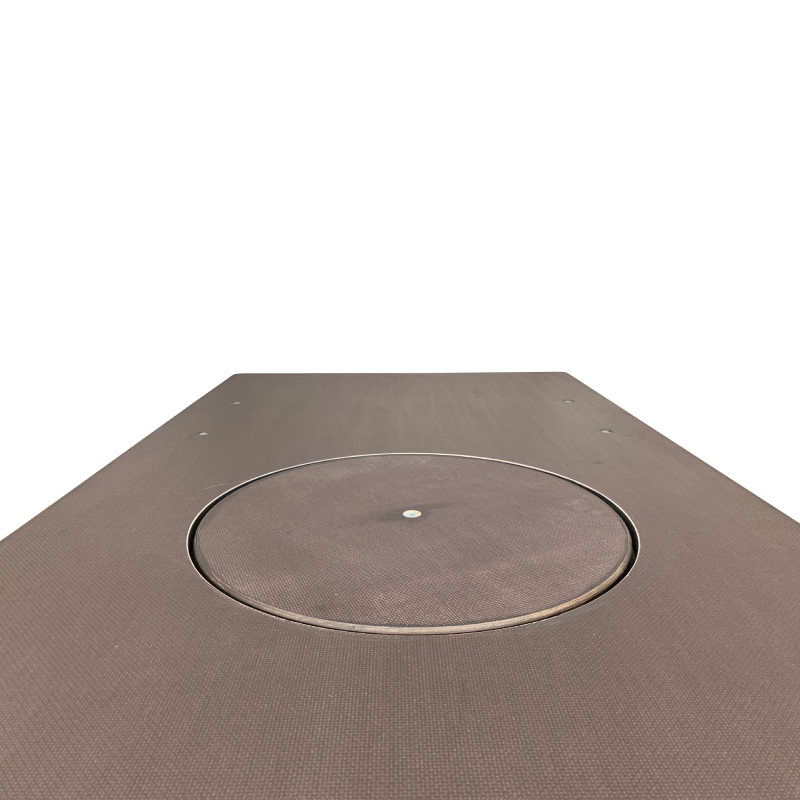

The tabletop is made of high quality, water-resistant plywood. It is equipped with a four cylinder pneumatically controlled central rotation unit, 500 mm in diameter that allows one to rotate the sofa during upholstery process.
A safety bar under the tabletop prevents further dropping of the table in situations when it gets blocked. For safety reasons, it is not possible to move the table after safety bar is activated unless the operator presses the RESET button. A hydraulic anti-bouncing brake system helps to prevent the table from bouncing.
Description
Rexel ST-3/HDKRBC Pneumatic Lifting Table for Upholstery
The Rexel ST-3/HDKRBC Pneumatic Lifting Table provides precise, safe, and ergonomic handling of upholstery and heavy materials. Its foot-controlled pneumatic cylinder allows smooth height adjustment, ensuring operators maintain a comfortable posture while handling large or heavy fabrics.
Designed for workshops, furniture factories, and industrial upholstery operations, this lifting table improves workflow efficiency, reduces operator fatigue, and enhances productivity compared to traditional upholstery trestles.
Key features:
- The table features a solid steel profile construction with a pneumatic cylinder, ensuring durability and long-term performance.
- A foot-controlled pneumatic system allows smooth and precise height adjustment for better operator comfort.
- The table includes a built-in connection slot for pneumatic tools, improving workflow efficiency.
- The system automatically locks after shutdown, ensuring safety and stability (cutting power off does not fold the table).
- An optional drawer for upholstery tools provides organized and convenient storage.
- Using this lifting table reduces energy consumption by up to 15% compared to traditional upholstery trestles.
- Operators using the lifting table achieve at least a 14% increase in productivity, improving overall work efficiency.
Specifications:
| Model | ST-3/HDKRBC |
| Working pressure | 6 bar (87 PSI) |
| Tabletop dimensions | 2000 mm x 900 mm (78.74″ x 35.43″), fi: 500 mm (19.68″) |
| Pneumatic cylinder | 2x (D125x600), 4x (D63x20) |
| Minimum height | 420 mm (16.53″) |
| Maximum height | 1355 mm + 20 mm (53.34″ + 0,78”) |
| Maximum load | 320 kg (705.4 lbs) |
