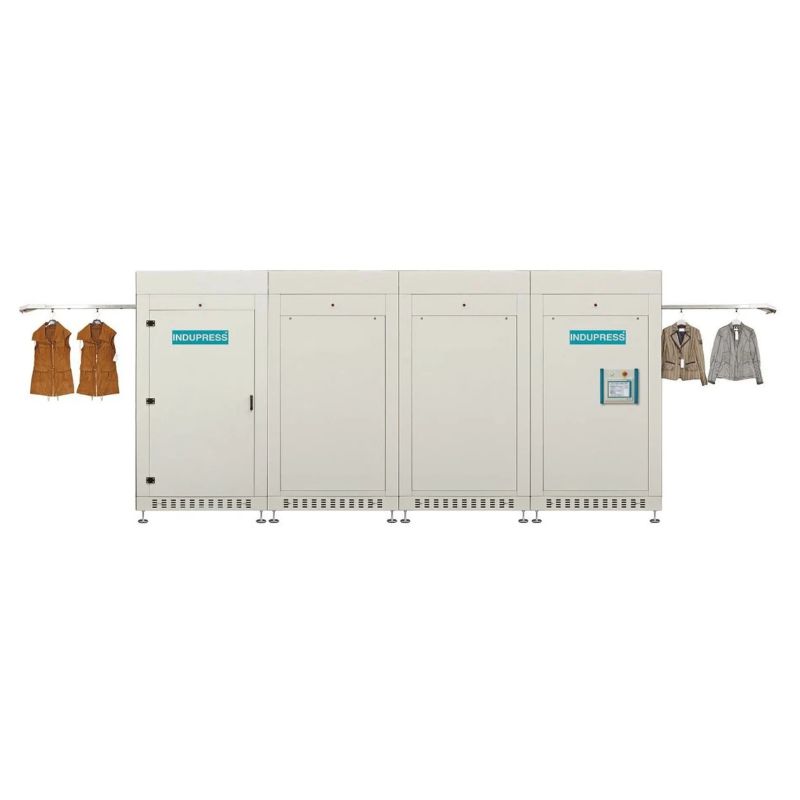

Naomoto Tunnel Finisher Mod. IPN-TF-13
The tunnel finisher IPN-TF-13 is equipped with:
- N. 1 | Steam module with 10 nozel rows
- N. 3 | Finishing modules with an high-performance cross flow vent
- N. 1 | Bag for air seal at the tunnel’s entrance, heated with residual heat
- N. 1 | Conveyor Belt with safe load and unload
Description

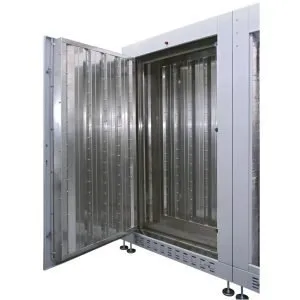

Steam Module – Interior View

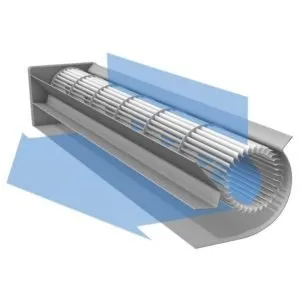

Cross Flow Fan Scheme

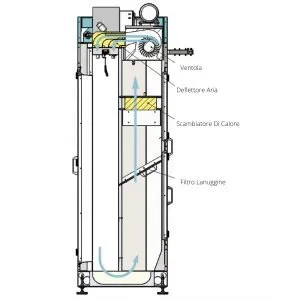

Heat Exchanger and Lint Filter

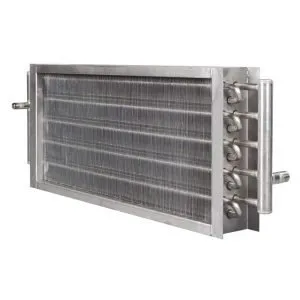

Stainless Steel Heat Exchanger
Finishing Module Scheme

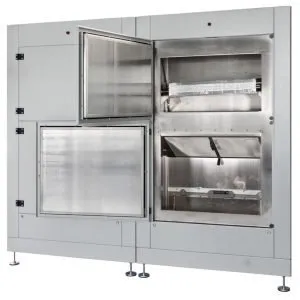

Double Separator

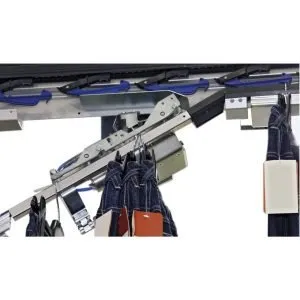

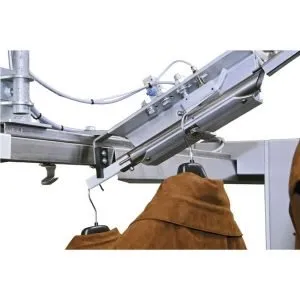

Conveyor

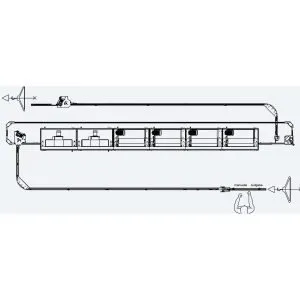

Layout Example
Technical Feature Of The Tunnel Finisher IPN-TF-13:
- Steam module:
– Steam area length: 140 cm
– Nozzle quantity: 181 - Finishing modules:
– Finishing area length: 420 cm
– Air circulation quantity: 24000 m3/h - Total tunnel length: 560 cm
- Total tunnel length with conveyor belt: 760 cm
- Width: 85 cm
- Flow width: 26 cm
- Steam nozzle rows: 10
- Approximate steam consumption: 290 Kg/h
- Air consumption: 150 Kg/h
- Voltage: 400 V 50 Hz
- Electric power with conveyor belt: 8,60
- Approximate capacity (It varies depending on the material): 1500 capi/ora
