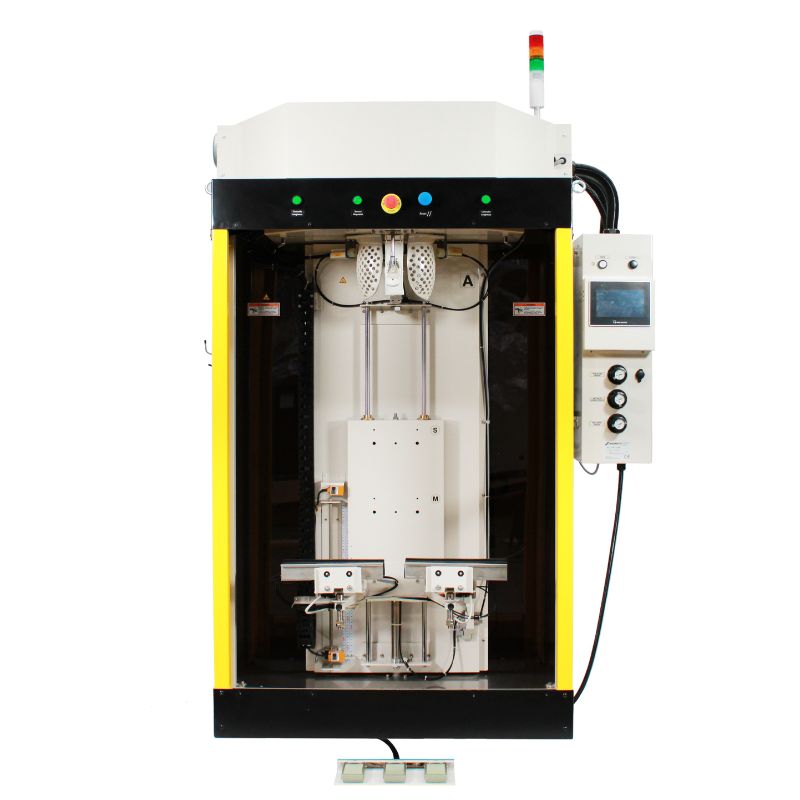

Naomoto Topper Mod. NMF-230NE 4.0

Description

The topper NMF-230NE 4.0 guarantees comfortable and clean working conditions, thanks to the use of hot air recycling and to the simple loading system.

The Topper NMF-230NE 4.0 Is Also Equipped With:

• Loading function during finishing operation
• Adjustment function for waist size and leg length
• Hip adjustment function:
  – mechanical lock clamps opening
  – pneumatic control for clamps opening
  – anti stretch device
  – optional interchangeable pressing shapes (man, womand and kid)
  – universal shape for hipe pressing included
• Leg pressing adjustment function:
  – pneumatic adjustment for leg tensioning
  – anti stretch device
  – length adjustment by proximity switch
  – revolving lower clamps
  – carriage downwards movements adjustment by micro switch
  – tensioning springs adjustment by micro switch
  – carriage position adjustable in 3 steps
  – carriage limit manual adjustment
• Machine adjustment function:
  – timer for steaming
  – steaming + blowing
  – timer for blowing
  – inverter controller blowing
  – switch for anti stretch device
• Security devices:
  – emergency button
  – security rotation laser
• Control panel:
  – panel switch
  – manual rotation switch
  – length check switch
  – hot air timer
  – steam timer
  – hot air volume adjustment for blowing
  – hot air volume adjustment for steaming
  – limit proximity selector
  – counter
  – length tension on-off selector
  – waist tension stop on-off selector
  – front holding pressure regulator from 0 to 4 Bar
  – waist and hip expansion pressure regulator from 0 to 4 Bar
  – hem clamping pressure regulator from 0 to 4 Bar
• N. 2 pc | Pneumatic buttons on the upper fram
• N. 2 pc | Big tensioning trouser clamps
• N. 1 pc | Timed vacuum system in the upper part of the machine
• N. 2 pc | Big size side panels on the carousel
• N. 1 pc | Reinforced cable for pedal set
• N. 1 pc | Mechanical lock for tensioning trouser clamps

Technical Features:

• Voltage: 220V 1P
• Hot air blowing engine power: 0,75kW
• Steam consumption: 40-50Kg/h 4Bar
• Dimensions: 1145 w x 1585 l x 1965 h  cm
• Weight: 430Kg

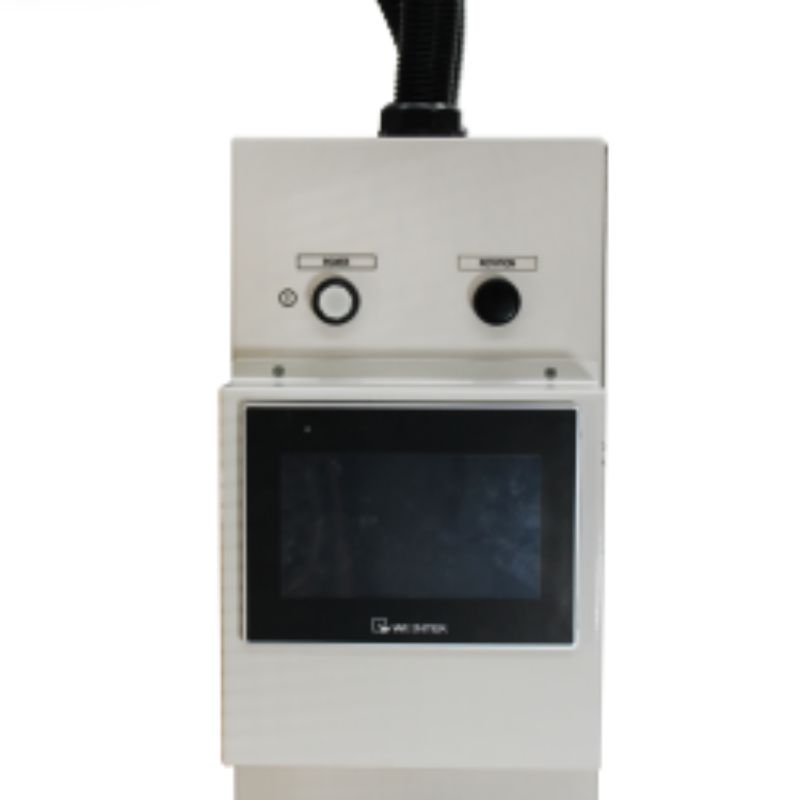

4.0 Touch Panel for Topper Mod. NMF-230NE:

• Operator Panel (HMI) Touch Screen 7″
• Connectiowith internal LAN and Internet
• Teleassistance from Naomoto Europe or from reseller.
• Remote control of the machine working.
• Faults management (Automatic faults or manual)
• Faults reported via e-mail to selected recipients.
• Maintenance management.
• Reports of faults, maintenance and production.
• Uto 99990 custom programs (9999 x 10).
• Connection to the ERP or to local database.
• Connection to a MySql / MS Sql Database
• Optional Connectiowith protocols MQTT / OPC UA / SQLite / FTP / Modbus.
• Possibility to add an order to the machine (with the quantity and the program)
• Possibility of associating a Barcode to each order
• Customization by request

Each program consists of:

Automatic Settings:

• Steam time
• Hot air time
• Air Power (By Inverter)
• Pants length regulation

Suggested Settings:

• 3 Pressures of the Machine suggested to the user (to set manually).

Production report is composed by:
For every item: Date, Ending Hour, Category, Program, Name, Quantity. User, Preparation Time, Steam Time, Hot air Time, Discharge Time, Total Time and Side of the machine (A or B).
