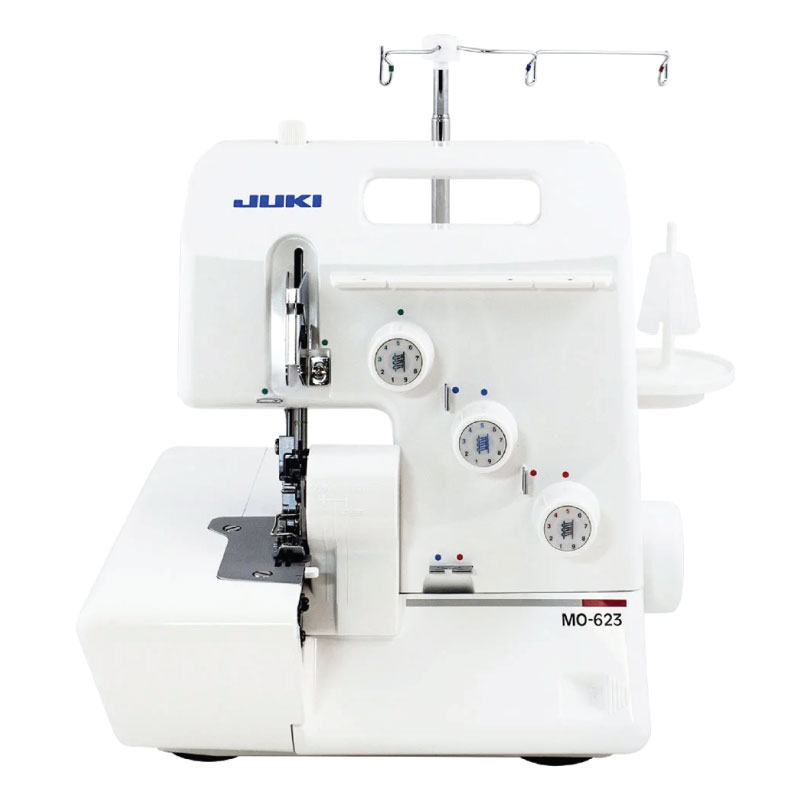

Juki MO-623N/SAU3 1-Needle, 2/3 Thread Overlock with Automatic Rolled Hemming

1-Needle, 2/3 Thread Overlock with Automatic Rolled Hemming Maximum 1,500 spm Designed with JUKI industrial technology, Overlocking Width – Standard: 4 mm Rolled Hem: 1.0 – 1.5 mm

Description

3-Thread Overlocker with Automatic Rolled Hemming
A beginner or advanced sewer can create simple projects or elegant fashions with the MO-623N single needle, 3 thread overlocker with automatic rolled hemming.

Other Features

右画像

Foot Pressure

can be adjusted according to the fabric. Adjusting the pressure to lightweight, medium weight or heavy weight fabrics allows you to sew beautifully.

右画像

Color-Coded Threading Guides

throughout the machine make threading easy and efficient.



右画像

Adjust Stitch Length

by simply turning the knob located inside the machine within the range of 1 to 4 mm.



右画像

Lower Knife Adjustment Knob

adjusts the lower knife quickly to change the width of fabric in the seam allowance, for perfect seams and rolled edges.

右画像

Heavy-Duty Knife System

operates with a dedicated drive to assure consistent and easy cutting of light to heavy weight fabrics.

右画像

Upper Knife Releasing System

removes the upper knife so that threading is made safer and easier.

右画像

Automatic Rolled Hemming

can now be created quickly and easily with built-in fingertip control. There is no need to change the foot or plate.

右画像

Multi-Purpose Foot

comes equipped with a slotted tape guide, which can be used to sew woven tape, elastic, sequins and ribbon.

右画像

Bright LED Lighting

The workspace is brightly illuminated. The long-life, energy-efficient lights will not heat up, even after a long period of use.



Specification

Dimensions 270 (W) x 260 (D) x 295 (H) mm
Weight 6.8kg
Maximum sewing speed Max. 1,500spm
Number of needles 1 Needle
Needle 130/705H
Number of threads 2/3 Threads
Presser foot pressure adjustment Stepless adjustment
Automatic rolled hemming Automatic rolled hemming lever
2-Thread converter Option
Thread cutter (on the presser foot shank)
Light LED
Stitch length 1-4mm
Presser foot lift 5mm
Stitch width Standard: 4mm | Rolled hem: 1.0-1.5mm
Accessories Foot control, Nets, Spool caps, Tweezers, Cleaning brush, Needles in the needle box, Small screwdriver, Oiler, Accessory bag, Dust cover
Instruction manual
