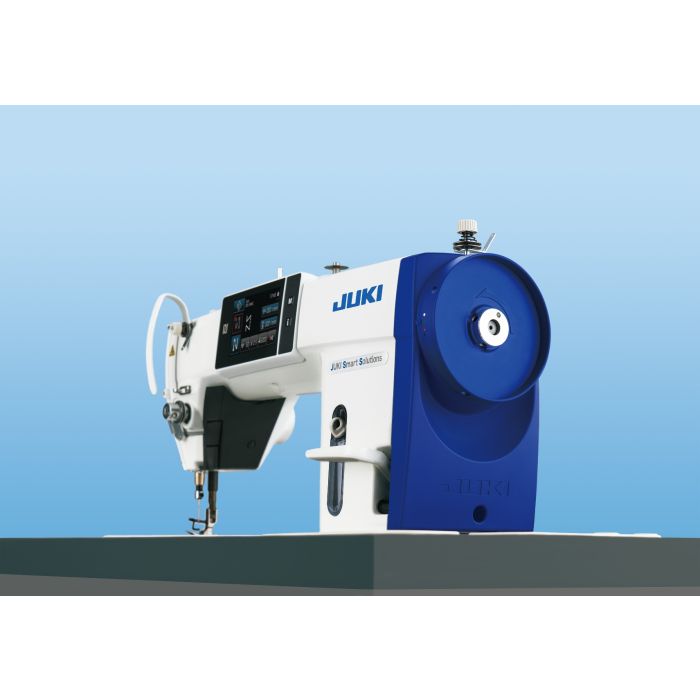

JUKI DDL-9000C Series Direct-drive, High-Speed, Sewing Machine
Juki DDL-9000C Series
Description
DDL-9000C/PBN digitalizes the machine adjustment used to be handled based on personal hunches and experience. The machine comes with bird’s nest prevention that commits to “seam quality”. The newly-developed model totally eliminates bird’s nests at the starting of sewing, which have been a conventionally inevitable factor when using machines with a thread trimmer. The length of thread remaining at the end of sewing is shortened.
Product features
-
The machine eliminates the “bird’s nest” at the starting of sewing

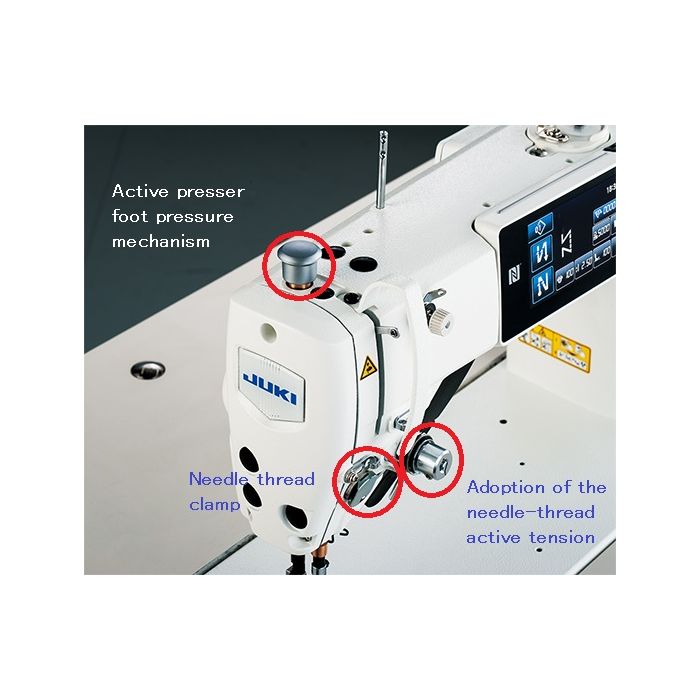

The machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird’s nests (thread tangling) on the wrong side of the material.
Only 3 mm long thread is left on the material at the end of sewing
The machine adopts a new thread trimming method where the newly-developed thread trimming mechanism trims the thread directly below the throat plate while the last stitch (or two stitches) at the end of sewing is (are) sewn with a smaller stitch length using condensation stitching.
As a result, the length of thread remaining on the material is shortened, thereby eliminating thread nipping work.
Management of sewing performance and sewing machine by the utilization of IoT
(Internet of Things)

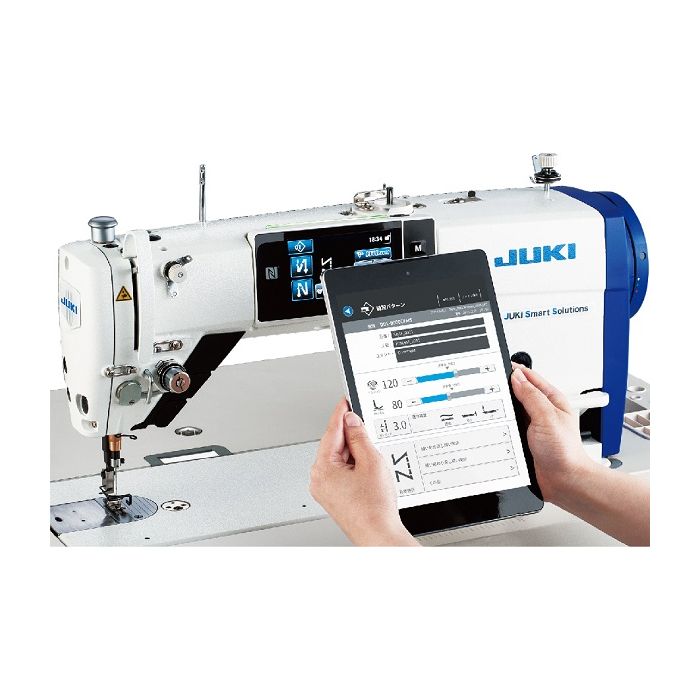

Data on sewing machine adjustments made according to the product to be sewn can be transferred to a commercially-available Android tablet in contactless mode. This enables quick check for uniform settings as well as confirmation of conditions of sewing machines in a sewing line, thereby facilitating setup changes.
The operation panel is also provided as standard with a USB port.
Data management and software update can be carried out with ease using a USB thumb drive.
Data items of sewing can be numerically managed to ensure “stable quality” and “reduction in time required for setup changes”. Quantified sewing data can be externally taken from the sewing machine using an Android tablet or USB thumb drive.
Basic performance
-
Commitment to seam quality “Reverse-feed stitching function by means of the reverse feed lever” is provided as standard
The operator carries out fine adjustment of correction sewing (within the stitch length of 1 pitch) using the reverse feed lever, thereby achieving “further improved seam quality”.
Specifications
| MODEL | DDL-9000C-FMS | DDL-9000C-FSH | DDL-9000C-SMS | DDL-9000C-SSH |
| Type | Full Digital Type | Digital Type | ||
| Application | Medium-weight | Heavy-weight | Medium-weight | Heavy-weight |
| Lubrication | Semi-dry | Minute-quantity lubrication | Semi-dry | Minute-quantity lubrication |
| Max. sewing speed | 5‚000sti/min*1 | 4‚500sti/min*2 | 5‚000sti/min*1 | 4‚500sti/min*2 |
| Hand switch | Provided as standard (At the time of shipment: Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) | |||
| Max. stitch length | 5mm | |||
| Thread trimming method | Double-edge rotary system | |||
| Needle bar stroke | 30.7mm | 35.0mm | 30.7mm | 35.0mm |
| Feed dog height | 0.8mm | 1.2mm | 0.8mm | 1.2mm |
| Needle thread tension | Active tension | Spring type | ||
| Presser foot pressure | Electronic control | Spring type | ||
| Needle | DB×1・DB×5（#11 #9～18（Nm65～110） |
DB×1・DB×5（#21） #20～23（Nm125～160） |
DB×1・DB×5（#11） #9～18（Nm65～110） |
DB×1・DB×5（#21） #20～23（Nm125～160） |
| Lift of the presser foot | By hand: 5.5mm‚ By knee: 15mm Auto: 1st stage 5.0 mm （*0.1～8.5mm）‚ 2nd stage 8.5 mm （*8.5mm～13.5mm） * Adjustable on the operation panel | |||
| Bobbin thread winder | Built in the top of machine head (provided with the bobbin thread retaining plate) | |||
| Lubricating oil | JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) | |||
| Size of bed | 517×178mm（distance from needle to machine arm：303mm） | |||
| Machine head drive | Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) | |||
| Power consumption | 520VA | |||
| Net weight | Machine head： 40.5kg（with AK-154） | |||
