Eurolaser M-800 Laser Cutting Machine
Description
Overview
The Eurolaser M-800 Laser Cutting with a processing area of 1330 x 830 mm (52.3″ x 32.6″) is well-prepared for all applications in the fields of laser cutting, engraving and marking. A special feature is the optional shuttle table system, which almost doubles your productivity, enabling you to hold all the aces even with a “smaller“ laser cutter.

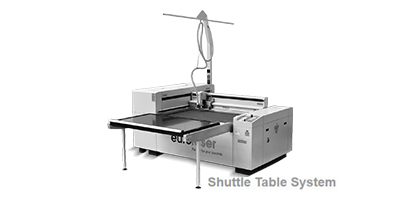

| The Laser Cutter M-800 is also available with the Shuttle Table System to double your productivity. |  |
 |  |  |
| Filigree Cuts | Clear cut edges | Engravings |
Which options do we offer?
| The modular design enables eurolaser systems to be specially configured to suit every requirement. We analyze your requirements and configure the laser system individually for you. The usage of eurolaser laser machines enables you to process a wide range of materials, such as cutting of plastics, foams, textiles, adhesive foils, wood, acrylic, composite materials and much more. | The Application Center runs a cutting test using your specific material and provides a detailed report showing how the laser machines cut and engraved it. This helps determine the optimal settings for precise and efficient production.
|
Automated processes for your laser machine | Higher productivity, more economical working – save time and money
 | This enables loading and unloading of the machining table during laser machining and demonstrably delivers an increase in efficiency of up to 75% when using a laser system. |
Optional extras
Customized options simplify everyday tasks and increase your possibilities
 | POSITIONplus – Optical Recognition System Automatic camera detection cuts printed materials precisely along the printed outline, and software control compensates for any copying tolerances in the printed format. |
 | 3 in 1 – Mechanical MachiningMechanical tool heads can be installed parallel to the laser, giving you the option to use tools such as milling cutters or knives. A valuable extension to your machining options with just one system technology. |
 | PICTUREplus – Raster Engraving UnitThis optional equipment allows machining of image files and production of both 2D-images and 3D-reliefs. Engraving is possible with a resolution of up to 1200 dpi and in 256 shades of grey. |
 | Exhaust and filter unitsSuction devices are selected to match your application and the table concept of your laser system. This guarantees complete emission extraction above and below the material. |
 | Cooling unitsHigh-quality, energy-efficient cooling units use electronic temperature controllers and monitoring systems to maintain ideal conditions for laser beam sources and ensure consistent performance. |
Technical Specifications
| Working area (w x l) | 1,330 x 830 mm (52.3″ x 32.6″) |
| Dimensions (w x l x h) | 2,730 mm x 1,970 mm x 1,600 mm (107.4″ x 77.5″ x 62.9″) |
| Max. material width | 1,642 mm (64.6″) |
| Material clearance | 15 – 55 mm (without material support) |
| Laser power | 60 to 450 watt |
| Laser source | CO2 |
| Speed | 1 – 1,414 mm/s (in steps of 1 mm) |
| Acceleration | max. 14.1 m/s² (555″/s²) |
