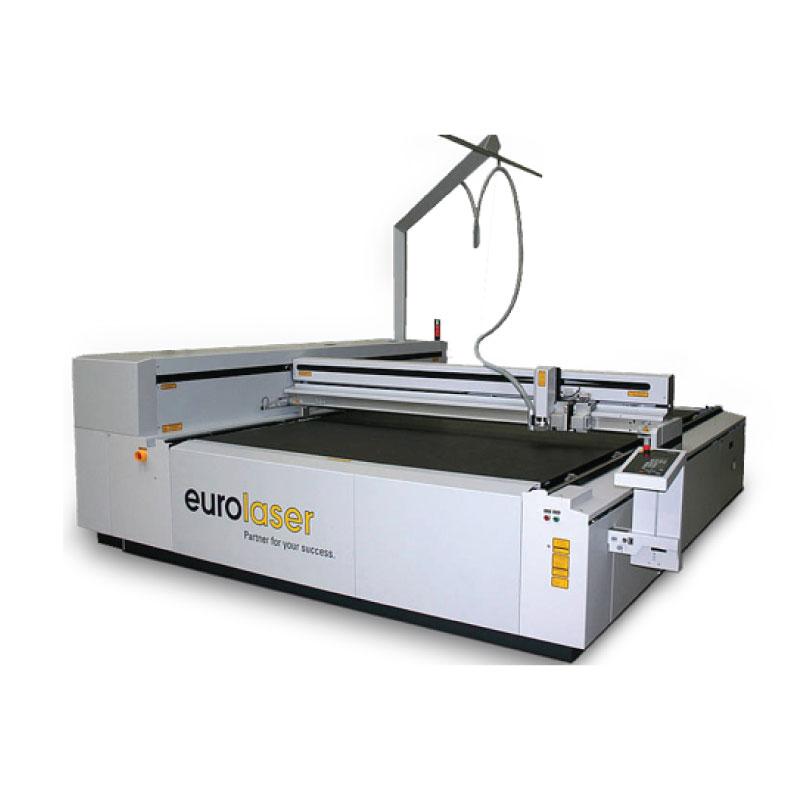

Eurolaser L-3200 Laser Cutting Machine
Laser Machine L-3200 – for those who think big!
Description
Overview
Various materials can be cut and engraved on a processing area of 1,800 x 3,200 mm (70.9″ x 126″). This CO2 laser machine is one of the largest among the eurolaser series and is available with many optional features. An ideal machine size for all applications requiring plenty of space.
| The CO2 Laser Machine L-3200 is also available with Conveyor System for textiles processing. |  | |
 |  |  |
| Filigree Cuts | Clear cut edges | Engravings |
Which options do we offer?
| The modular design enables eurolaser systems to be specially configured to suit every requirement. We analyze your requirements and configure the laser system individually for you. The usage of eurolaser laser machines enables you to process a wide range of materials, such as cutting of plastics, foams, textiles, adhesive foils, wood, acrylic, composite materials and much more. | The Application Center runs a cutting test using your specific material and provides a detailed report showing how the laser machines cut and engraved it. This helps determine the optimal settings for precise and efficient production.
|
Automated processes for your laser machine – Higher productivity, more economical working – save time and money
 | Remote OperationThe software-controlled division of the work area allows laser system operation on alternate sides. This enables production to be continued on the opposite side while removing and reloading material. |

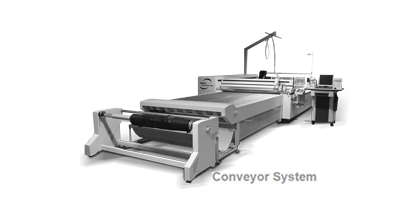

 | Conveyor SystemBy using this automatic material feed, textiles can be fed for laser cutting directly from the roll and routed after laser cutting directly to a table extension. After a material feed cycle, the system produces sections with high connecting accuracy, enabling practically endless material output. The bale material is fed via an automatic feeding unit. An feeding system edge controller ensures accurate positioning of the material. There is even an option to add a winding unit to the Conveyor System. The system evenly winds previously processed textiles, enabling a fully automated cutting process. |
Optional extras
Customized options simplify everyday tasks and increase your possibilities
 | POSITIONplus – Optical Recognition System Automatic camera detection cuts printed materials precisely along the printed outline, and software control compensates for any copying tolerances in the printed format. |
 | 3 in 1 – Mechanical MachiningMechanical tool heads can be installed parallel to the laser, giving you the option to use tools such as milling cutters or knives. A valuable extension to your machining options with just one system technology. |
 | PICTUREplus – Raster Engraving UnitThis optional equipment allows machining of image files and production of both 2D-images and 3D-reliefs. Engraving is possible with a resolution of up to 1200 dpi and in 256 shades of grey. |
 | Exhaust and filter unitsSuction devices are selected to match your application and the table concept of your laser system. This guarantees complete emission extraction above and below the material. |
 | Cooling unitsHigh-quality, energy-efficient cooling units use electronic temperature controllers and monitoring systems to maintain ideal conditions for laser beam sources and ensure consistent performance. |
Technical Specifications
| Working area (w x l) | 1,800 mm x 3,200 mm (70,8″ x 126,0″) |
| Dimensions (w x l x h) | 3,520 mm x 3,940 mm x 1,600 mm (138.5″ x 155.1″ x 62.9″) |
| Max. material width | 1,880 mm (74.0″) |
| Material clearance | 58 – 80 mm (according to material support) |
| Laser power | 60 to 650 watt |
| Laser source | CO2 |
| Speed | 1 – 1.414 mm/s (in steps of 1 mm) |
| Acceleration | max. 9.1 m/s² (358″/s²) |
