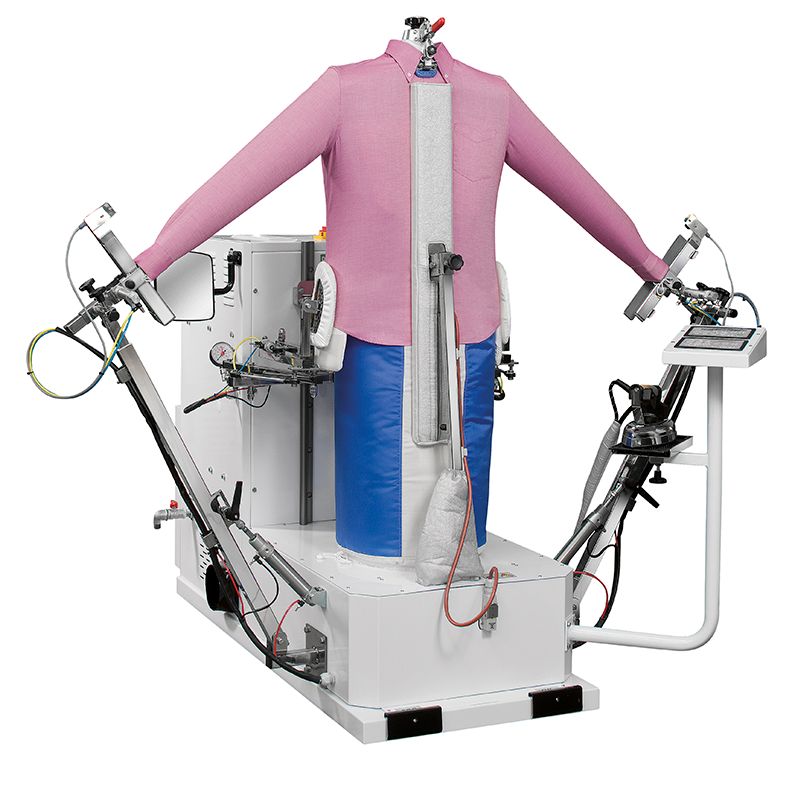

BATTISTELLA Pegaso/V
Pneumatic steaming dummy without boiler To be connected to the steam source
Description
Overall dimensions | 180x210x161 H cm |
Packaging | 4,6 m³ |
Weight | 200 Kg |
Average steam consumption | 15 Kg/h |
Superheater power | 2,0 kW |
Blowing motor power | 1,75 HP |
Vacuum motor power | 3 HP |
Compressed air pressure | 6 BAR (by request) |
Steam working pressure | 5÷6 BAR (by request) |
Standard voltage | 400 V+N – 50 Hz |
Voltage on request | 220 V – 60 Hz – 3-phase |
