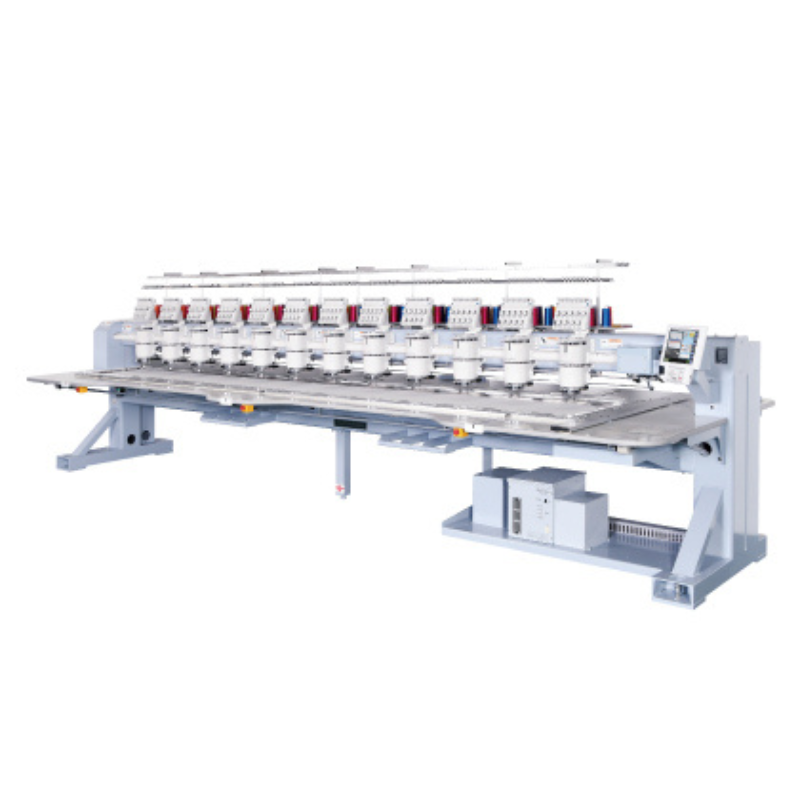

BARUDAN BEKY-FII Series（9 Colors / Latest Model)
Flat bed models that combine technology cultivated from years of high-performance multi-head machine sales, producing the best embroidery quality and productivity in the industry.
Equipped with a 9-needle, rotary head with machines available up to 12 heads. This model meets a wide range of needs with a maximum embroidery area of 600mm (H) x 350mm (V).
Designed to be compact, the BEKY-FII Series it suitable for smaller spaces.
Suitable for embroidering on a wide range of products, including garments, hats, shoes, and bags, this machine is highly regarded in the industry for its excellent embroidery quality.
Model: BEKY-Y912FII
Embroidery Area: 600X350/350
Number of Needles: 9
Description
01. Narrow Cylinder Arm
| Smaller diameter cylinder arm and newly designed trimmer allows sewing deeper into narrow areas on pockets and slippers. |  |
02. Servo Drive Motors
| Powerful servo motors are designed for high productivity, reliability and excellent stitch quality. |  |

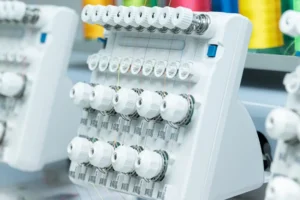

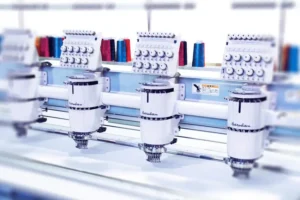

03. Rotary Head with 9 Needles
| Our unique rotary head provides superior embroidery quality, productivity, and durability.The compact head offers more room for fabric and frame changes, and it highly regarded in the industry. Additionally, the rotary head allows quick and smooth color changes. |  |
04. High Quality MK6 Trimmers
| Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability. |  |
05. Matrix
| Useful function for producing badges and emblems. Machine sews continously by entering the number of lines and rows. |
 |
06. Hoop Outline Displayed on Machine
| Displays the frame in use on screen by scanning a barcode attached to the frame. Barcode reader is required separately. |
 |
07. Frame Centering / Frame Limit Function
|
Places current design in the frame automatically Frame Centering function sets a design in a selected frame automatically. |
 |
|
Prevents machine operation if design is outside of frame limit Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate. |
 |
08. Shortcuts
| Customize most-used icons on the screen |  |
|
Customize operation icons Can arrange a group of most used icons for easy access based on particular application. |
 |
09. Design Transfer / Machine Networking
|
USB conncetion Import and export designs data saved in USB memory |
 |
|
Bluetooth Design Transfer Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs. |
 |
|
LAN connection B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added. |
 |
Standard
LED |
Bobbin Winder (BN-3e)
|
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BEKY-Y912FII | 450X350/350 | 350 | 450X4200 | 9 | 0.1~12.7 | 200~1000 | 1P AC100V~AC240V 3P AC200V~AC415V |
0.7 |
|---|---|---|---|---|---|---|---|---|
| 600X350/350 |
|
| ・LAN port x 1 ・USB port x 1 ・COM port x 1 ・Touch Screen 10.4 inch LCD, Resolution 800X600 pixl ・100 memory locations, 70 million stitch capacity |
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.

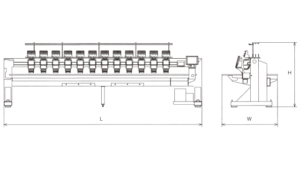

Machine Dimensions
| Model Name | Maximum machine dimensions(mm) | |||
| embroidary area (mm) | L | W | H | |
| BEKY-Y912FII | 450X350/350 | 5355 | 1365 | 1565 |
| 600X350/350 | 5355 | 1665 | 1565 | |
・Machines and specifications are subject to change at any time without prior notice.
Option
One Touch Frame
|
Spider Frame |
Long Wooden Frame |
Loop & Code Device |
 Sequin Devices |
Signal Tower |
