BARUDAN BEKT-S501CAII V250 CLAMP FRAME

Single head model packed with the same technology as our multi-head machines.
A new model with a compact size designed for smaller spaces. The included clamp frame comes standard and allows easier hooping and position adjustment.
Equipped with 5 needles and a 250mm (V) x 250mm (H) embroidery area. Perfect for names and small logos.
A variety of frames are available for sewing on sports uniforms, workwear, school uniforms, shoes, socks, gloves, caps, bags and other items.

Model: BEKT-S501CAII V250
Embroidery Area: 250X250
Number of Needles: 5

Category: Embroidery Machines Brand: Barudan

Description

Description

01. Smaller Machine Size

Compact size for smaller spaces

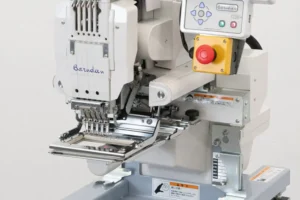

02. Clamp Frame Standard

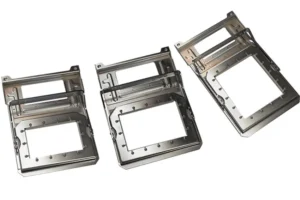

Clamp Frame Standard Select from the following frame sizes: 70mmX120mm, 90mmX140mm, 40mmX120mm.
Easier hooping Hands free hooping using foot pedals for opening/closing the frame.
Plate springs securly hold different materials and greatly reduce frame marks. Plate springs are designed to accept 3 sizes of clamp frames.
New clips are designed to better hold backing Also helps to secure material to frame New clips of caking paper (For CAII) is optional

03. New Tensioner

Larger LED on Tensioner

Brighter for easier monitoring of machine status

Easier Threading

New thread guide ensures faster and easier threading

04. Open Bridge-Type Chassis

Open bridge-type chassis allows more room for easier sewing on shoes and bags.

05. Laser Marker (Cross) Standard

Laser pointer provides fast hoop centering and embroidery starting point.

06. Name Drop

Easy to view multiple name design

Separates names in a multiple name design for veryfing and sewing purposes. Helps to avoid errors.

Easy to repair name

Access a single name if you need to repair it.

Audible Alert

When a name is finished sewing, machine beeps to notify operator to change over to the next item to be sewn.
Operator is free to perform other tasks while machine is running.

07. Hoop Outline Display

Displays the frame being used on screen by scanning a barcode attached to the frame.
Barcode reader is required separately.

08. Frame Centering / Frame Limit Function

Places current design in frame in use automatically

Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.

Prevents machine operation if design is outside of frame limit

Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.

09. Shortcuts

Customize most-used icons on the screen

Customize operation icons

Can arrange a group of most used icons and access them based on a particular application.

10. Cap Frame / Clamp Frame Mode

Easy to change from Clamp/Cap/Blue Frame mode.

Changes the setting of corresponding frame automatically by pressing dedicated icons on the screen.

11. Design Transfer/Machine Networking

USB conncetion

Import and export design data saved in USB memory

Bluetooth Design Transfer

Barudan’s Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines.
Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to current serial communication.
No stress waiting to send design data with large stitch counts.
Bluetooth receiver and special software “Bluetooth Manager” are required separately

LAN connection

B-NET networking sofware connects up to 100 machines. Using LAN Ethernet conncetion, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode.Additional features, such as web-based dashboards, machine status and production reports can be added.
Special networking software is required separately. The number of connection is different depnding on the sotware.

Standard

Clamp Frame Standard x 1 (From 70×120, 90×140, 40×120)

Clamp Frame ASSY

Duct Unit For Clamp
Air compressor (not included) is required.(1 horse power recommended)

Foot For Clamp x 2

Laser Marker (Cross)

Machine Specifications

Other Standard Specifications	・LAN port x 1 ・USB port x 1 ・8.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs
Embroidery Area （mm）	250X250
Cap Frame （mm）	(Wide) H 72 x V 250 (Semi-Wide) H 72 x V 172
Clamp Frame （mm）	Follows a clamp frame in use
Number of Needles	5
Stitch Length （mm）	0.1~12.7
Speed （rpm）	(Blue frame, Portal frame）200~1200 (Clamp frame, Cap frame）200~1000
Power Supply （V）	1P AC100V~AC240V
Consumption （kW）	0.225
