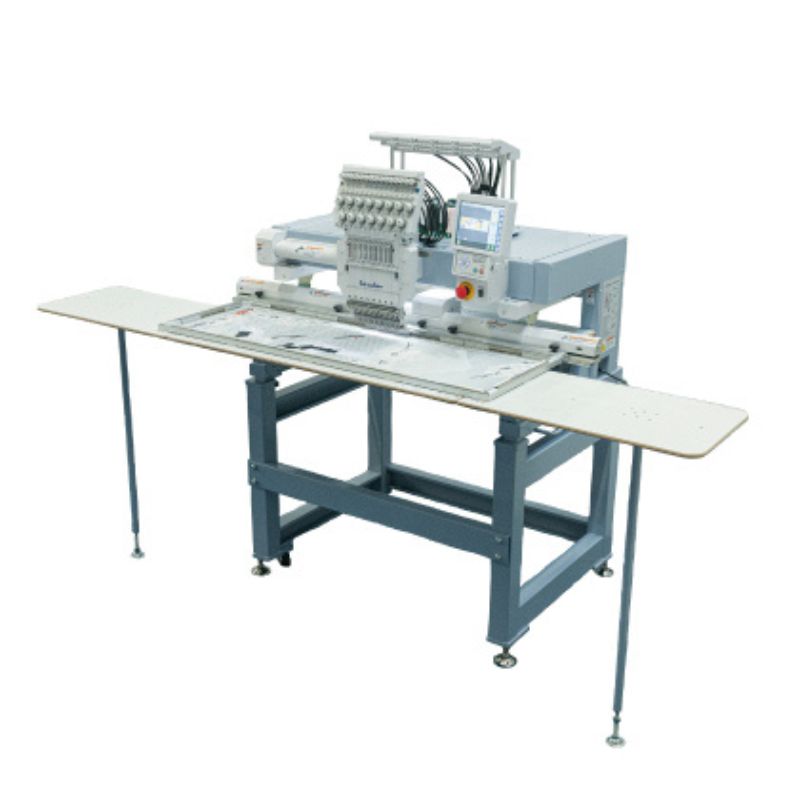

BARUDAN BEKT-S1501CII

Single head bridge model with the same technology as our multi-head machines.
Equipped with 15-needles and an embroidery area of 450mm(H) x 520mm(V). Provides excellent stitch quality on any embroidery application.
A newly designed thread trimmer and small diameter cylinder arm enables embroidery in small areas and pockets.

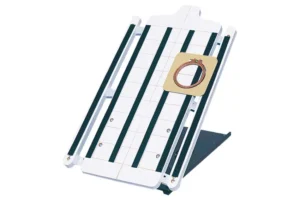

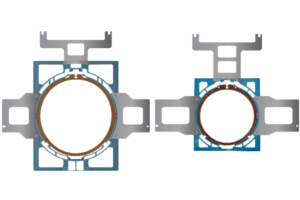

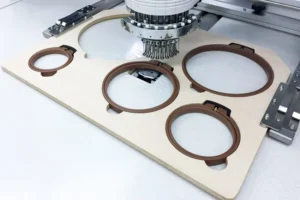

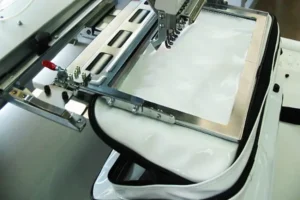

A wide array of frames are available enabling embroidery on a diverse range of products including apparel, sportswear, uniforms, workwear, school merchandise, shoes, socks, gloves, hats, bags, and much more.

Model: BEKT-S1501CII
Embroidery Area: 450X520/520
Number of Needles: 15

Category: Embroidery Machines Brand: Barudan

Description

Description

Function

01. Narrow Cylinder Arm

Smaller diameter cylinder arm and newly designed trimmer allows sewing deeper into narrow areas on pockets and slippers.

02. Open Bridge-Type Chassis with Servo Motors

Open chassis provides a larger area for sewing on shoes and bags.

03. New Tensioner

Larger LED on tensioner

Brighter for easier monitoring of machine status.

Easier Threading

New thread guides ensure quick and easy threading.

04. Standard Laser Pointer

Laser pointer ensures precise centering of design.

05. Name Drop

Easier to view multiple name designs

Separates names in a multiple name design for verifying and sewing.

Easy to repair name

Access a single name if repair is needed

Audible Alert

When a name is finished sewing, machine beeps to notify operator to change over to next item to be sewn. Operator is free to perform other tasks while machine is running.

06. Hoop Outline Displayed on Machine

Displays the frame in use on screen by scanning a barcode attached to the frame.
Barcode reader is required separately.

07. Frame Centering / Frame Limit Function

Places current design in the frame automatically

Frame Centering function sets a design in a selected frame automatically.

Prevents machine operation if design is outside of frame limit

Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.

08. Shortcuts

Customize most-used icons on the screen

Customize operation icons

Can arrange a group of most used icons for easy access based on particular application.

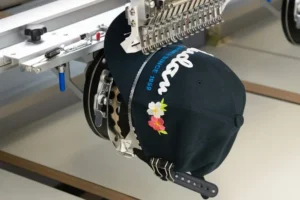

09. Cap Frame Mode

Easy to change from Cap/Blue Frame mode.
Changes the setting of corresponding frames automatically by pressing dedicated on screen icons.

10. Design Transfer / Machine Networking

USB conncetion

Import and export designs data saved in USB memory

Bluetooth Design Transfer

Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs.
Bluetooth receiver and special software “Bluetooth Manager” are required separately

LAN connection

B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
Special networking software is required separately. The number of connection is different depnding on the sotware.

Standard

Laser Pointer (dot)

LED

Machine Specifications

Other Standard Specifications	・LAN port x 1 ・USB port x 1 ・8.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs
Embroidery Area （mm）	450X520/520
Cap Frame （mm）	(Wide) H86 x V360 (Semi-Wide) H 72 x V 172

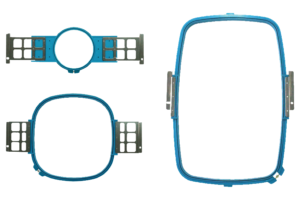

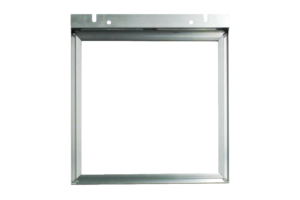

Blue frame （mm）	(maximum)460X434
Number of Needles	15
Stitch Length （mm）	0.1~12.7
Speed （rpm）	(Blue frame, Portal frame）200~1300 (Cap frame）200~1000
Power Supply （V）	1P AC100V~AC240V
Consumption （kW）	0.225
