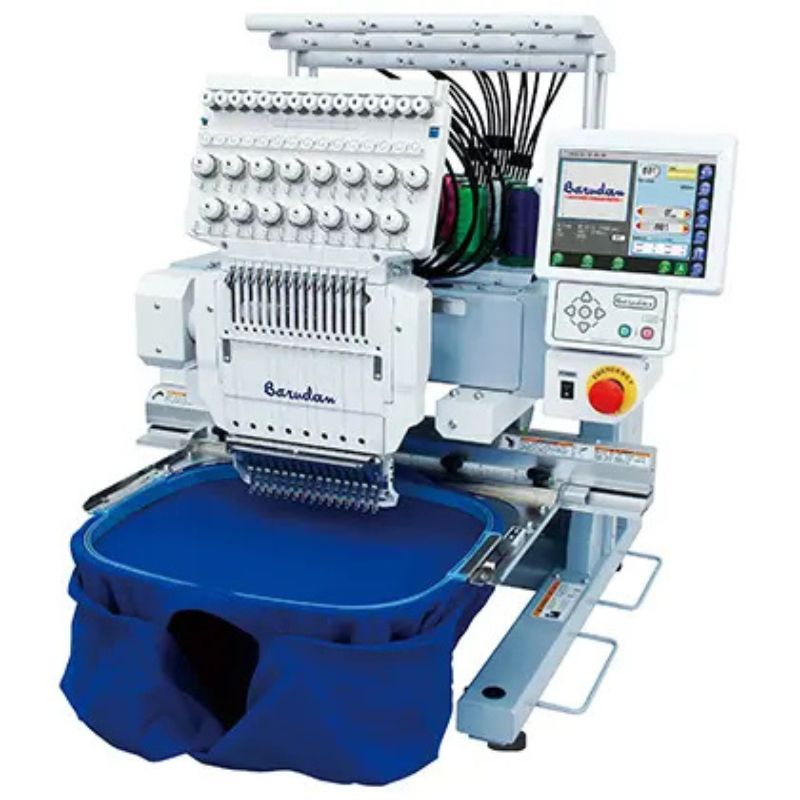

BARUDAN BEKT-S1501CBIII

Single head model packed with the same technology as our multi-head machines.
Equipped with 15 needles and a 360mm (H) x 500mm (V) embroidery area, provides excellent stitch quality on a variety of products.
A smaller diameter cylinder arm and newly designed trimmer allows sewing deeper into narrow items and pockets.
A variety of frames allow embroidery on such items as sports uniforms, workwear, school uniforms, shoes, socks, gloves, caps, bags and more.

Model: BEKT-S1501CBIII
Embroidery Area: 360X500
Number of Needles: 15

Category: Embroidery Machines Brand: Barudan

Description

Description

Function

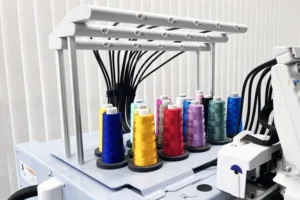

01. New Thread Stand Only for 15 needles model

New thread stand allows easier threading from front of machine.
Available on 15-needle single head models only.

02. Narrow Cylinder Arm

Smaller diameter cylinder arm and newly designed trimmer allows sewing deeper into narrow areas on pockets and slippers.

03. Open Bridge-Style Chassis with Servo Motors

Open chassis provides a larger area for sewing on shoes and bags.

04. New Tensioner

Larger LED on tensioner

Brighter for easier monitoring of machine status.

Easier Threading

New thread guides ensure quick and easy threading.

05. Standard Laser Pointer

Laser pointer for precise centering of designs

06. Name Drop

Easier to view multiple name designs

Separates names in a multiple name design for verifying and sewing. Helps to avoid errors.

Easy to repair name

Access a single name if you need to repair it.

Audible Alert

When a name is finished sewing, machine beeps to notify operator to change over to the next item to be sewn. Operator is able to perform other tasks while machine is running.

07. Hoop Outline Display

Displays the frame being used on screen by scanning a barcode attached on the frame.
Barcode reader is required separately.

08. Frame Centering / Frame Limit Function

Places current design in frame automatically

Frame Centering function centers design in a selected frame automatically.

Prevents machine operation if design is outside of frame limit.

Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.

09. Shortcuts

Customize most-used icons on the screen

Customize operation icons

Can arrange a group of most used icons for easy access based on particular application.

10. Cap Frame Mode

Easy to change from Cap/Blue Frame mode.
Changes the setting of corresponding frames automatically by pressing dedicated on screen icons.

11. Design Transfer / Machine Networking

USB conncetion

Import and export designs data saved in USB memory

Bluetooth Design Transfer

Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs.
Bluetooth receiver and special software “Bluetooth Manager” are required separately

LAN connection

B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
Special networking software is required separately. The number of connection is different depnding on the sotware.

Standard

Laser Pointer

LED

New Thread Stand

Machine Specifications

Other Standard Specifications	・LAN port x 1 ・USB port x 1 ・8.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs
Embroidery Area （mm）	360X500
Cap Frame （mm）	(Wide) H 86 x V 360 (Semi-Wide) H 72 x V 172
Blue frame （mm）	380X438
Number of Needles	15
Stitch Length （mm）	0.1~12.7
Speed （rpm）	(Blue frame, Portal frame）200~1300 (Cap frame）200~1000
Power Supply （V）	1P AC100V~AC240V
Consumption （kW）	0.225
