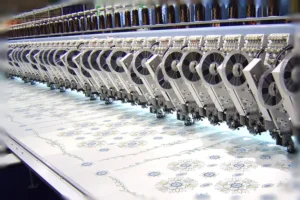

BARUDAN BEKS Super Big Field Series
Extra Large Field Model with High Quality and Productivity
Up to 56 heads are available and sequin device is also.
Provides wide-range products, home texitile, traditional clothes, flags, scarves and decorative parts.
Model: BEKS-S556
Embroidery Area: 1500X162.4/350
Number of Needles: 5
Description
Function
01. Same Embroidery Area as Schiffli machine
| The embroidery are 162.4 is same as general Schiffli machine. Easier materai setting helps to improve preparation time compared to Schiffli machines. |
 |
02. New Tensioner
| The large LED display makes it easy to monitor the machine’s operating status. Updated thread guides make threading easy.. |  |
03. Servo Drive Motors
| Servo motors ensure high productivity and exceptional quality embroidery. |  |
04. 5 Needle In-Line Sewing Head
| 5 Needles SH Sewing Head Standard Compact head distance helps easier material setting and great visibility. Selected head can be off automatically by using a head cancelling switch. |
 |
05. High Quality MK6 Trimmers
| Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability. |  |

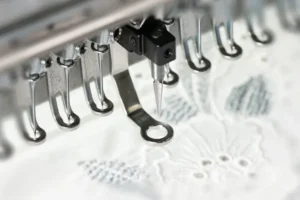

06. Boring Device Standard
| Borning device standard on needle No.3. The device Creates beautiful borner embroidery. |  |

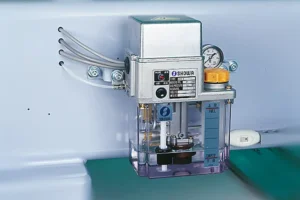

07. Automatic Lubrication Standard
| Lubricated to 4 points on head and 2 heads on cylinder bed automaticallly by setting certain operation time and stitches. |  |
08. Double Field Function (Continuous Designs)
| BEKS-S1518 800X400/500 Example: Maximum embroidery field: 800mm in vertical x 400mm in horizontal direction while using all 18 heads. Maximum embroidery field: 800mm in vertical x 500mm in horizontal direction while using 9 heads–either by even or odd numbered of heads |
|
09. Head Selection Function
| Large, continuous embroidery designs can be produced by controlling each head individually. |  |
10. Frame Centering / Frame Limit Function
|
Places current design in the frame automatically Frame Centering function sets a design in a selected frame automatically. |
 |
|
Prevents machine operation if design is outside of frame limit Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate. |
 |
11. Shortcuts
| Customize most-used icons on the screen |  |
|
Customize operation icons Can arrange a group of most used icons for easy access based on particular application. |
 |
12. Design Transfer / Machine Networking
|
USB conncetion Import and export designs data saved in USB memory |
 |
|
Bluetooth Design Transfer Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs. |
 |
|
LAN connection B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added. |
 |
Standard
LED |
Bobbin Winder (BN-3e)
|
Boring Device On Needle No.3 |
|
Automatic Lubrication System |
Machine Specifications
| Others | ・LAN Port x 1 ・USB Port x 1 ・COM Port x 1 ・10.4 touch panel LCD, Resolution 800X600 pixel ・100 Designs , 7000 million stitches at Maximum |
|---|---|
| Embroidery Area （mm） |
1500X162.4/500 |
| Needle Distance （mm） |
— |
| Continious Design （mm） |
1500X9094 |
| Number of Needles | 5 |
| Stitch Length （mm） |
0.1~12.7 |
| Speed （rpm） |
200~1000 |
| Power Supply （V） |
3P AC200V~AC415V |
| Consumption （kW） |
2.1 |
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.

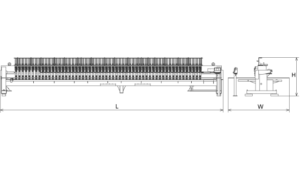

Machine Dimensions
| Dimensions（mm） | Embroidery Area (mm) | |
| L | 10925 | 1500X162.4/500 |
|---|---|---|
| W | 3590 | |
| H | 1920 |
・Machines and specifications are subject to change at any time without prior notice.
Option
Signal Tower |
