BARUDAN BEKS-HLCLZ Series (Triple Combination)

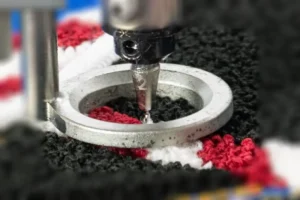

Automatically switches from Standard Embroidery to Chenille Embroidery

Auto/Semi-Auto Switching from/to regular embroidery and chenille embroidery.
Stitch file data controls when Automatic Switching is to be utilized.

Automatic Color Change System, Automatic Thread Trimming and Thread Keeping

Automatic color change up to 6 colors. Automatic thread trimming and thread keep ensure high performance and productivity.

Automatic Needle Bar Height Adjustment System

Ten levels of needle height adjustment. Size of chain stitch and height of loop stitch can also be adjusted.

Automatic Needle Bar Raising Function

Smooth frame/material changes are made easier by the movement of needle bars, nipples and presser foot.

Automatic Tension Open / Close Function

Appropriate thread tension can be adjusted automatically for chain stitch, loop stitch and other stitches.

Switch Function of Chain and Loop Stitch

Chain and loop stiches can be changed by the stitch data in the design.

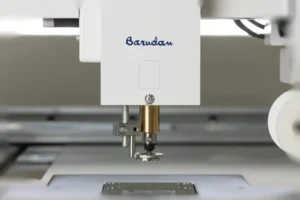

Auto Switch between Regular Embroidery and Lock Stitch Zig Zag Embroidery

Auto/Semi-Auto Switch from/to regular embroidery and chenille embroidery.
Stitch file data controls when Automatic Switching is to be utilized.

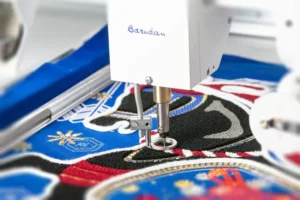

Automatic Change of Sewing Patterns for Lock Stitch Zig Zag

Signals for cording, taping, zig zag, rolled stitch and so on can be input in a design data.
In addition, the height and stroke of nipple, width of zig zag can be set individually.

Take-Up Lever Cancel Function

Take-Up Lever can be cancelled semi-automatically on a head that is not in operation. Prevents unthreading of the needle during head cancellation.

Automatic Trimmer for Bobbin Thread

Bobbin thread can be trimmed automatically before long jumps then switch to regular embroidery head, and after the design is completed.

Automatic Nipple Height Adjustment Function

Height of nipple can be adjusted in 10 steps from 0~5mm.
Finishing of cording and taping varies by the height of nipple.

Automatic Nipple Stroke Adjustment Function

Stroke of nipple can be adjusted in 10 steps from 0~5mm.
Finishing of cording and taping varies by the stroke of nipple.

Cording

5 different sizes of Cord Holder Guide is standard.
3 other sizes optional.

Taping

15 different sizes of Tape Guide is standard.
26 other sizes / kinds optional.

Zig Zag Stitches

Choose from 6 patterns of zig zag stitches and 7 kinds of Cord Guides in different sizes.
6 other patterns are available.

Wide Variety of Sewing Patterns

Rolled stitch, back cord stitch, frill stitch can be accessed by changing the individual sewing pattern with optional guide.

Places current design in the frame automatically

Frame Centering function sets a design in a selected frame automatically.

Prevents machine operation if design is outside of frame limit

Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate.

Customize operation icons

Can arrange a group of most used icons for easy access based on particular application.

USB conncetion

Import and export designs data saved in USB memory

Bluetooth Design Transfer

Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs.
Bluetooth receiver and special software “Bluetooth Manager” are required separately

LAN connection

B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added.
Special networking software is required separately. The number of connection is different depnding on the sotware.

LED

Bobbin Winder (BN-3e)

Bobbin Winder (with counter) ※For lock stitch zig zag

Bobbin (for the number of head) ※For lock stitch zig zag

[Guide for Lock Stitch Zig Zag and Cording]
Cord Presser Foot ASSY 5 types (1.0/1.5/2.0/2.5/3.0mm)

[Guide for Lock Stitch Zig Zag]
Cord Guide ASSY 7 types (1.0/1.5/2.0/2.5/3.0/3.3/3.5mm)

[Guide for Lock Stitch Zig Zag and Taping]
Tape Guide ASSY 15 types (width 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0mm x thickness 0.3mm) (width 3.0, 3.5, 4.0, 5.0, 6.0, 9.0mm x thickness 2.0mm) (width 5.0mm x thickness 3.0mm)

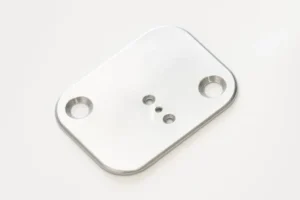

[Chenille Embroidery] Needle Plate: 3 types (hole diameter: 1.4mm, 1.6mm, 1.8mm)

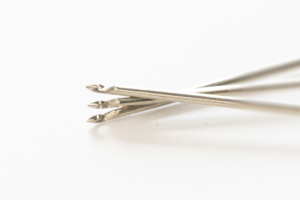

[Chenille Embroidery] Needle: 3 types (#90, #100, #110)

[Chenille Embroidery] Nipple: 4 types (hole diameter: 1.0mm, 1.1mm, 1.2mm, 1.4mm)
