BARUDAN BEKS-H Series (9 Needles / High Speed Latest Multi Head Model)
Latest multi-head model that continues to lead the industry with the highest quality embroidery, productivity and durability.
Designed for high volume production and superior stitch quality with a maximum speed of 1200spm.
Equipped with 9 needles and available in 15 to 20 heads with an embroidery area of 800mm (H) x 400mm (V).
Model: BEKS-Y920H
Embroidery Area: 600X300/600
Number of Needles: 9
Description
Function
01. New Tensioner
| Large LED for easier monitoring of machine status. User-friendly thread ensures easier threading. |  |
02. Servo Drive Motors
| Powerful servo motors are designed for high productivity, reliability and excellent stitch quality. |  |
03. High Speed 9-Needle Rotary Head
| High speed rotary head with maximum speed or 1200 spm. Our unique rotary head provides superior embroidery quality, productivity, and durability.The compact head offers more room for fabric and frame changes, and is highly regarded in the industry. Additionally, the rotary head allows quick and smooth color changes. |  |
04. High Quality MK6 Trimmers
| Upper and lower bobbin thread is cut simultaneously during trimming. The MK6 trimmers have a reputation for high performance and exceptional durability. |  |
05. Double Field Function (Continuous Embroidery)
| BEKS-Y920H 600X300/600 example: ☞ Maximum embroidery field: 600mm in vertical x 300mm in horizontal direction when using all 18 heads ☞ Maximum embroidery field: 600mm in vertical x 600mm in horizontal direction when using every other head (10 heads).(Note) Only even or odd heads can be used in standard specifications. Only odd number of heads can be used in some specifications. |
 |
06. Head Selection Function
| Large, continuous embroidery designs can be produced by controlling each head individually. |  |
07. Hoop Outline Display
| Frame can be displayed on the screen by reading the barcode attached on frame. A barcode reader is required separately. |
 |
08. Frame Centering / Frame Limit Function
|
Places current design in the frame automatically Frame Centering function sets a design in a selected frame automatically. |
 |
|
Prevents machine operation if design is outside of frame limit Frame Limit function prevents the accidental hitting of the frame. If a design is outside of the frame parameters, the machine will not operate. |
 |
09. Shortcuts
| Customize most-used icons on the screen |  |
|
Customize operation icons Can arrange a group of most used icons for easy access based on particular application. |
 |
10. Design Transfer / Machine Networking
|
USB conncetion Import and export designs data saved in USB memory |
 |
|
Bluetooth Design Transfer Bluetooth Manager networking software allows for the connectivity of up to 7 devices, including Barudan K-Series embroidery machines. Operators can easily drag/drop designs to multiple machines up to 10 times faster compared to serial communication–even large stitch count designs. |
 |
|
LAN connection B-NET networking software connects up to 100 machines. Using LAN Ethernet connection, designs can be pushed via Schedule Mode, or pulled by Direct Download Mode. Additional features, such as web-based dashboards, machine status and production reports can be added. |
 |
Standard
LED |
Bobbin Winder (BN-3e)
|
Machine Specifications
| Model Name | Embroidery Area（mm） | Needle Distance（mm) | Continuous Design (mm) | Number of Needles | Stitch Length（mm） | Speed（rpm） | Power Supply (V) | Power Consumption (kW) |
| BEKS-Y915H | 800X400/500 | 400 | 800X6000 | 9 | 0.1~12.7 | 200~1200 | 1P AC200V~AC240V 3P AC200V~AC415V |
1.9 |
|---|---|---|---|---|---|---|---|---|
| BEKS-Y918H | 800X400/500 | 400 | 450X7300 | 9 | 0.1~12.7 | 200~1200 | 1P AC200V~AC240V 3P AC200V~AC415V |
1.9 |
| BEKS-Y920H | 600X300/600 | 300 | 600X6000 | 9 | 0.1~12.7 | 200~1200 | 1P AC200V~AC240V 3P AC200V~AC415V |
1.9 |
|
| ・LAN port x 1 ・USB port x 1 ・COM port x 1 ・Touch Screen 10.4 inch LCD, Resolution 800X600 pixl ・100 memory locations, 70 million stitch capacity |
・The embroidery area indicated above allows for maximum pantograph movement. The frame used may restrict the actual embroidery field size.
・The speed indicated above may vary depending on stitch length, materials and so on.
・Machines and specifications are subject to change at any time without prior notice.

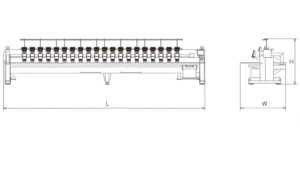

Machine Dimensions
| Model Name | Maximum Machine Dimension(mm) | |||
| embroidary area (mm) | L | W | H | |
| BEKS-Y915H | 800X400/500 | 7575 | 2100 | 1670 |
|---|---|---|---|---|
| BEKS-Y918H | 800X400/500 | 8775 | 2100 | 1670 |
| BEKS-Y920H | 600X300/600 | 7945 | 1700 | 1670 |
・Machines and specifications are subject to change at any time without prior notice.
Option
One Touch Frame
|
Spider Frame |
Long Wooden Frame |
Loop & Code Device |

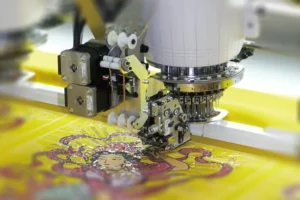

 Sequin Devices |
Signal Tower |
