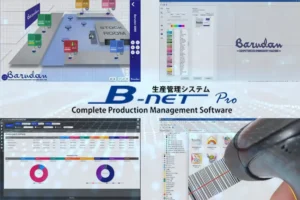

BARUDAN B-NET Series (Complete Production Management Software）
By synchronizing the embroidery machine with network software, it enables design data and production management, significantly improving production efficiency.
The connection method is via LAN.
B-NET Pro allows for the management, editing, and transfer of design data, monitoring of machine operation status, tracking of production numbers, and maintenance management.
B-NET Workgroup allows for the management, editing, and transfer of design data.
Model: B-NET Pro
Description
Product Lineup
B-NET Workgroup
| This product manages, edits, and transfers design data.
– Functions – |
 |
B-NET Pro
| This product handles design data management, editing, and transfer, as well as monitoring machine operation status, tracking production counts, and maintenance management
– Functions – |
 |
Main Function

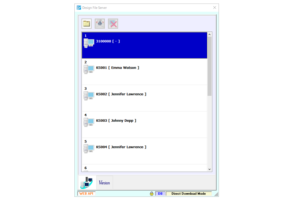

01. Design File Server
| Connect the embroidery machine and computer via LAN to transfer design data from a server or other storage locations to the machine.
Compatible with：B-NET Workgroup / B-NET Pro |
 |

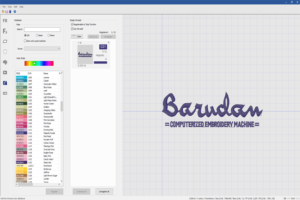

02. Design File Function Editor
| You can edit color change functions within design data. When using the new FDR-II V6 format, you can insert or modify all operational functions.
Compatible with：B-NET Workgroup / B-NET Pro |
 |

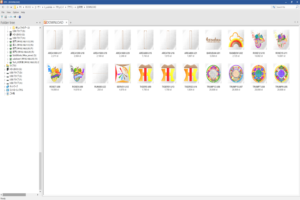

03. Design File Explorer
| Design data can be displayed in Windows Explorer format, making management easy.
Compatible with：B-NET Workgroup / B-NET Pro |
 |

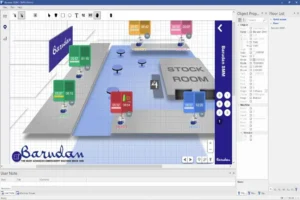

04. Swing Machine Manager
| You can display the placement of embroidery machines on a map. Icons indicate the operational status of each machine, allowing for easy monitoring. Compatible with：B-NET Pro |
 |

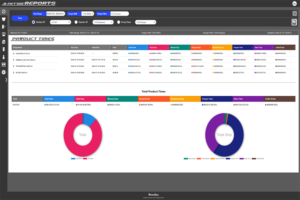

05. B-NET Reporting
| It displays the production counts and thread breakage statistics for the embroidery machines. Compatible with：B-NET Pro |
 |

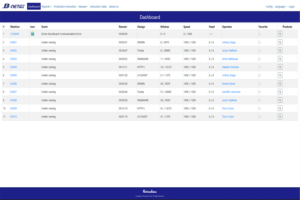

06. B-NET WEB
| It displays the operational status and simplified statistical results of the embroidery machines on a web browser. The browser allows viewing regardless of the OS or device conditions.
Compatible with：B-NET Pro |
 |

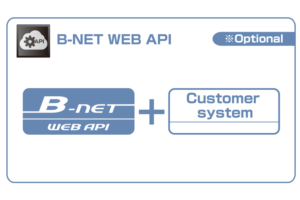

07. B-NET WEB API
| By using HTTP communication, you can control and monitor some of the functions included in B-NET, allowing integration with your existing systems.
Compatible with：B-NET Pro Optional Function |
 |
System requirements
| Supported OS | Windows 10 / 11 ※64-bit only Windows Server 2016 / 2019 / 2022 |
|---|---|
| CPU | Intel Core i5 or more 4GHz or more |
| Required Memory | At least 4GB |
| Required hard disk space | At least 10GB |
| Resolution | XGA (1024 X 768) or more |
| Color depth | Maximum（32-bit) |
| Others | A LAN environment must be in place, and communication via TCP/IP should be abailable. The automat must support LAN connections. Do not use a USB-LAN converter. |
